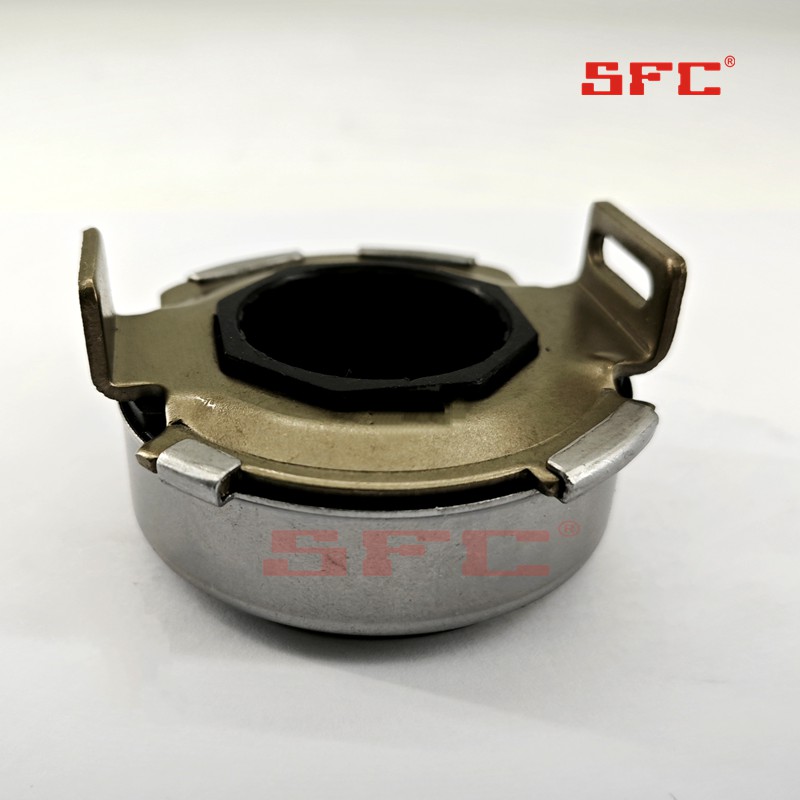

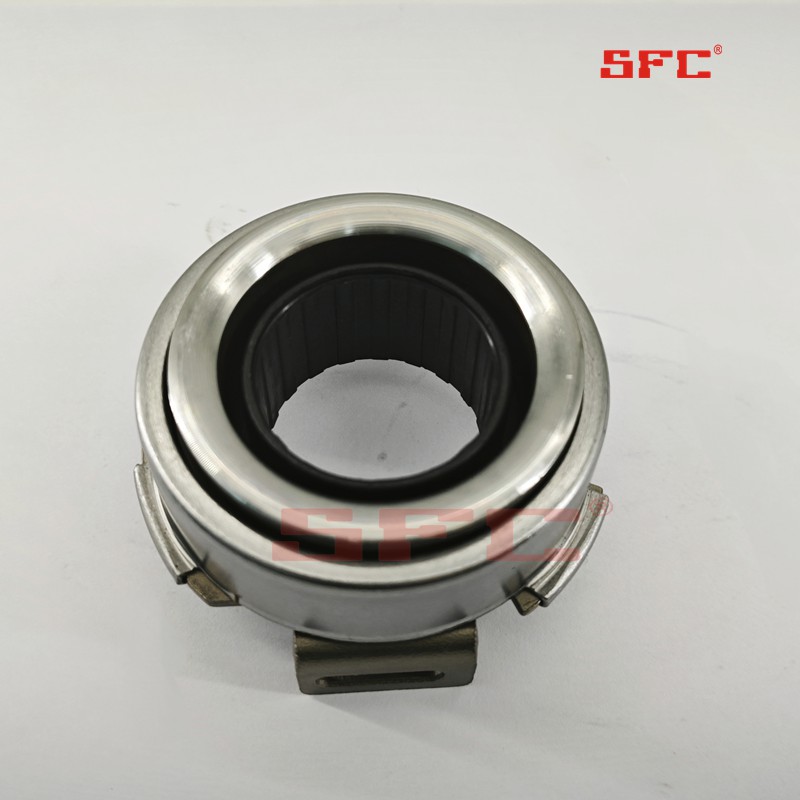

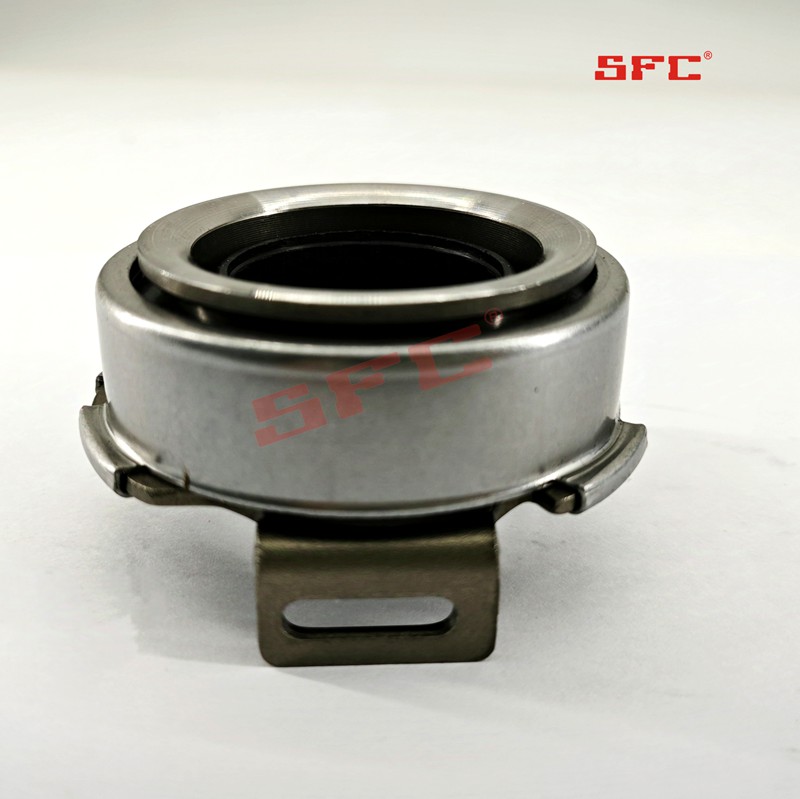

Product Introduction

Clutch Release Bearing QR512-1602101 is a key component designed specifically for automotive clutch systems, used to support the clutch pressure plate and transmit power. This bearing model is suitable for various vehicle types, especially widely used in commercial and heavy-duty vehicles. QR512-1602101 clutch bearings are renowned for their high precision, long lifespan, and excellent performance, and are an important component in ensuring smooth operation of clutch systems.

 Technical specifications

model: Clutch Release Bearing QR512-1602101

Outer diameter (OD): 30mm

Inner diameter (ID): 12mm

Width (W): 14mm

Type: Ball bearing

Material: High quality bearing steel

Sealing method: double-sided rubber seal

Lubrication: Long lasting grease

Working temperature range:- 40 ° C to+150 ° C

Rated load: dynamic load 7.8kN, static load 3.9kN

Speed: Maximum speed 18000 RPM

Precautions for use

Correct installation: Ensure that the bearing installation position is clean and free of impurities, and avoid installation that is too tight or too loose.

Regular inspection: Regularly check the working status of bearings, promptly detect and handle abnormal situations.

Reasonable lubrication: Choose the appropriate lubricant according to the usage environment and working conditions, and regularly lubricate and maintain it.

Avoid overloading: Do not exceed the rated load of the bearing to avoid damage.

Packaging and Storage

Packaging: Each bearing is individually packaged with a moisture-proof bag to ensure that it is not damaged during transportation.

Storage: Store in a dry, well ventilated environment, avoiding direct sunlight and high temperature and humidity.

Hope you have gained a deeper understanding of clutch rease bearing QR512-1602101. If you have any questions or need further assistance, please feel free to contact us at any time.
