Product Introduction

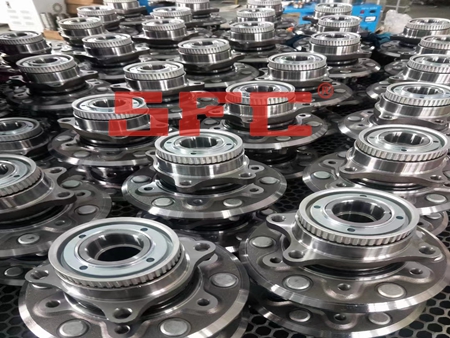

DAC25520042 Auto wheel hub bearing belonging to double row ball bearings, with metal seals and rubber seals, made of GCR15 material.

The parameters of DAC25520042 bearing include an inner diameter of 25mm, an outer diameter of 52mm, a thickness of 42mm, and a weight of 0.5kg. ‌

Inner and outer diameters: The inner diameter of DAC25520042 bearing is 25mm, and the outer diameter is 52mm. These dimensions are the fundamental parameters for bearing design and are crucial for ensuring that bearings can adapt to specific application scenarios and installation spaces of mechanical equipment. ‌

Thickness: The thickness of the bearing is 42mm, which plays an important role in ensuring the stability and durability of the bearing during operation. ‌

Weight: The weight of the bearing is 0.5kg, which is of great significance for calculating the load capacity of the entire mechanical system and selecting appropriate installation and support structures. ‌

In addition, DAC25520042 bearings also have the following characteristics:

Material: Made of high carbon chromium bearing steel (fully quenched type), this material has good wear resistance and hardness, which can meet the needs of high-speed operation. ‌

Sealed type: Equipped with 2RS sealed dustproof form, this design helps prevent dust and pollutants from entering the interior of the bearing, thereby extending the service life of the bearing. ‌

Grouping method: Adopting DB grouping method, this grouping method is suitable for application scenarios that require high precision and high performance. ‌

In summary, DAC25520042 bearings, with their specific dimensions, materials, and design features, are suitable for applications that require high-speed operation and high performance, such as mechanical components such as automotive wheels.

Except DAC25520042 auto wheel Hub Bearing ,show the application of others auto bearings on below:



DAC25520037-2RS    Fukang, Chery QQ, Geely Rear Wheel, Renault

DAC25520042-2RS    Changan Benben

DAC25520043-2RS    Renault, Freedom Ship Rear Wheel

DAC25550043        Renault

DAC25600045-ZZ      Peugeot 307

DAC27520045/43      Nissan (Nissan)

DAC28580042-2RS     Changhe, Chang'an Star, Jiabao, Songhua River Front Wheel

DAC28580044-2RS        New Fly Swift Rear Wheel

DAC29530037-ZZ       Ford

DAC30600037-2RS        Fiat, SEAT, Rada, Lancia, Volvo

DAC34640037-2RS      Rada, Volkswagen, Daewoo

DAC34660037-2RS       Honda Accord

DAC3561.80040-ZZ      Beidou Star, Aidier, Hafei Lubao

DAC3506240C-ZZ        Alto Little Prince

DAC35640037-2RS      Xiali Happiness Ambassador

DAC35650035-2RS       Renault, Chrysler

DAC35660037-2RS      Subaru

DAC35680037-2RS       Fiat, Volvo

DAC35720033-ZZ        Citroen, Peugeot, Lao Fukang



The role of Auto Wheel Hub Bearing in automobiles is crucial, as they can support the weight of the vehicle, provide precise guidance, reduce friction and noise, improve fuel economy and driving comfort. When selecting wheel hub bearings, it is necessary to choose the appropriate type based on the vehicle's usage environment and requirements.

If you are finding DAC25520042 Auto Wheel Hub Bearing,and others automobile bearings,please contact with our salersperson.
