Shandong Bearing Wheel Hub Beaing DAC25520037 DAC27530043 DAC28580044
High performance sealing ring
Low friction torque
High load capacity
Light Weight
long-life
Low noise
ABS technology
Product Introduction
As the cars more and more,Wheel hub bearing is more poppular in the world.
The Wheel Hub Beaing DAC25520037 DAC27530043 DAC28580044 is a precision-engineered automotive component designed to ensure optimal wheel rotation, vehicle stability, and driving safety. Manufactured to meet or exceed OEM specifications, this high-quality bearing assembly integrates a durable hub and sealed bearing unit, delivering exceptional performance for modern vehicles. Compatible with popular car models, it eliminates wheel wobble, reduces friction, and withstands harsh driving conditions.
Here's a data-driven technical specification for Wheel Hub Beaing DAC25520037 DAC27530043 DAC28580044, structured in a professional format:
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Generation 3 Integrated Hub Unit |
| Inner Diameter (ID) | 25mm 27mm 28mm |
| Outer Diameter (OD) | 52mm 53mm 58mm |
| Width | 37mm 43mm 44mm |
| Sealing Type | Double-Lip Contact Seal (RS2) |
| Lubrication | High-Temp Lithium Complex Grease |
| Weight | 0.31 kg 0.36kg 0.47kg |
| Wheel Bearing | Dimensions(mm) | Mass | Hub Assembly | Clutch Bearing | Truck Bearng | Taper roller bearing | Wheel bearing kit | Wheel Bearing | |||
| d | D | B | C | ||||||||
| DAC25520037 | 25 | 52 | 37 | 37 | 0.31 | 54KWH01 | VKC2601 | 564734.H195 | HM218248/10 | VKBA 1333 | 510082 |
| DAC25520042 | 25 | 52 | 42 | 42 | 0.36 | 51KWH01 | VKC2091 | 566193.H195 | 32218 | VKBA 3455 | 510086 |
| DAC27530043 | 27 | 53 | 43 | 43 | 0.34 | 52710-25001 | VKC3500 | 566425.H195 | EK50045 | 510058 | |
| DAC27600050 | 27 | 60 | 50 | 50 | 0.56 | 52710-2D111 | VKC3501 | 566426.H195 | EK50046 | VKBA 3661 | 510092 |
| DAC28580044 | 28 | 58 | 44 | 44 | 0.48 | 51750-2D003 | VKC3502 | 566427.H195 | NP672572 | VKBA 1358 | 510093 |
| DAC29530037 | 29 | 53 | 37 | 37 | 0.35 | 42200-SAA-G02 | VKC3505 | 569868.H195 | 39581/39520 | VKBA 3614 | 510095 |
| DAC30550032 | 30 | 55 | 32 | 32 | 0.28 | 28BWK15 | VKC3507 | 571762.H195 | NP318274 | VKBA 3676 | 510100 |
| DAC34660037 | 34 | 66 | 37 | 37 | 0.5 | MB242820 | VKC3514 | 201059 | 30206 | VKBA 3680 | 510037 |
| DAC35650035 | 35 | 65 | 35 | 35 | 0.4 | 2DACF4-100/495 | VKC3515 | 800792 | 30207 | VKBA 3613 | 510038 |
| DAC35650037 | 35 | 65 | 37 | 37 | 0.51 | 27BWK03 ABS | VKC3519 | 803194A | 30209 | VKBA 3639 | 516004 |
| DAC37720033 | 37 | 72 | 33 | 33 | 43200-30R07 | VKC3523 | VKBA3552 | 30210 | VKBA 3648 | 516005 | |
| DAC37720037 | 37 | 72 | 37 | 37 | 0.59 | 3DACF026F1AS | VKC3527 | VKBA5314 | 30212 | VKBA 3596 | 516012 |
| DAC38700037 | 38 | 70 | 37 | 37 | 0.56 | 3DACF026F-2A | VKC3530 | VKBA5397 | 30313 | VKBA 6831 | 510072 |
| DAC38720036/33 | 38 | 72 | 36 | 33 | 0.56 | 53KWH01 | VKC3538 | VKBA5412 | 32007X | VKBA 1460 | 512405 |
| DAC38720036 | 38 | 72 | 36 | 36 | 1DACF6-98/44 | VKC3541 | VKBA5415 | 32212 | VKBA 3617 | 512416 | |
| DAC38720040 | 38 | 72 | 40 | 40 | 0.63 | 2DACF5-95/702 | VKC3548 | VKBA5416 | 32219 | VKBA 3556 | 512469 |
| DAC38740036 | 38 | 74 | 36 | 36 | 0.62 | 801344D | VKC3552 | VKBA5423 | 32309 | VKBA 6556 | 512494 |
| DAC39720037 | 39 | 72 | 37 | 37 | 0.6 | 2DACF5-100/425 | VKC3553 | VKBA5424 | 32310 | VKBA 3907 | 512510 |
| DAC39740036 | 39 | 74 | 36 | 36 | 0.54 | D6512615XE | VKC3555 | VKBA5552 | 33209 | VKBA 6520 | 512554 |
| DAC39740036/34 | 39 | 74 | 36 | 34 | 0.52 | 3DACF10-85/52 | VKC3556 | BTF0056EB | 33213 | VKBA 3656 | 512568 |
| DAC40720036/33 | 40 | 72 | 36 | 33 | 0.67 | 42410-87101 | VKC3558 | 80503A.H195 | 33213 | VKBA 3981 | 513335 |
| DAC40720036 | 40 | 72 | 36 | 36 | 42200-SM4-018 | VKC3559 | F-805567 | 33118 | VKBA 3532 | 513338 | |
| DAC40740036 | 40 | 74 | 36 | 36 | 0.62 | 3DACF026F-1AC | 3151027031 | 805092C | 32310 | VKBA 3658 | 513365 |
| DAC408402538 | 40 | 84.02 | 53.8 | 53.8 | 0.97 | 43560-26010 | F - 358286 | 805011C | 33215 | VKBA 3554 | 513366 |
| DAC42720038 | 42 | 72 | 38 | 38 | 0.54 | 89411-B2050 | 360809B | 805479 | 33116 | VKBA 3786 | 513389 |
| DU42750060 | 42 | 75 | 60 | 60 | 2DACF6-1143/59 | F - 358547 | 805008 | 3977X/3921XA | VKBA 3605 | 27BWD01J | |
| DAC42760033 | 42 | 76 | 33 | 33 | 0.65 | 3DACF10-84/78-I | CR 1315 | 805531 | LM78349A/10C | VKBA 3576 | 28BWD03A |
| DAC42760038/35 | 42 | 76 | 38 | 35 | 0.65 | BR930872 | 500000820 | 805012 | 32206B | VKBA 3643 | 28BWD01A |
| DAC42760040 | 42 | 76 | 40 | 40 | 0.68 | 42410-12130 | 3151133031 | BTH0018A | L44649/10 | VKBA3608 | 30BWD01A |
| DAC43790045 | 43 | 79 | 45 | 45 | 0.84 | 2DACF4-100/565 | 3151044031 | BTH0022 | L45449/L45410 | VKBA1437 | 32BWD05 |
| DAC45820045 | 45 | 82 | 45 | 45 | LA01-33-04XB | 3151899001 | BTH0053 | 34274/34492A | VKBA 007 | 34BWD11 | |
| DAC49900045 | 49 | 90 | 45 | 45 | 1.08 | 42410-87701 | 3151807001 | BTH0055 | 594A/592A | VKBA3404 | 34BWD07B |
| DAC50890051 | 50 | 89 | 51 | 51 | 55BWKH01V | 500023560 | 81 93420 0346 | 32218 | VKBA1441 | 34BWD09A | |
| DAC52960050 | 52 | 96 | 50 | 50 | 43202-72B00 | PRB-42 | VKBA528 | JH307749/10 | VKBA 959 | 35BWD19E | |
| DAC54960051 | 54 | 96 | 51 | 51 | 89544-06070(R) | 3151875001 | SET420 | 42686/42624 | VKBA 733 | 35BWD07 | |
| DU55900054 | 55 | 90 | 54 | 54 | 2DACF5-100/56 | 500053960 | VKBA 673 | 575S/572 | VKBA 505 | 35BWD07A | |
| DAC55900060 | 55 | 90 | 60 | 60 | 2DACF6-100/45 | F-218286.2 | VKBA523 | 482A/472 | VKBA 5038 | 35BWD16 | |

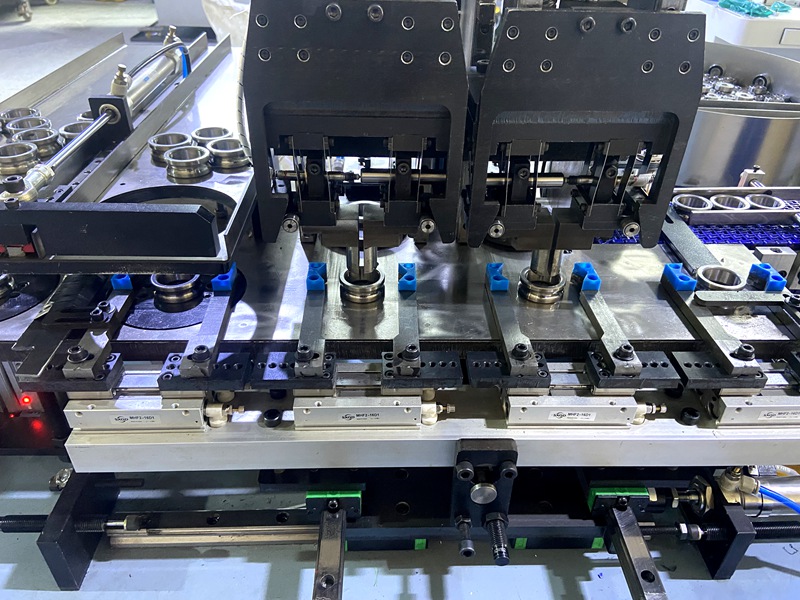

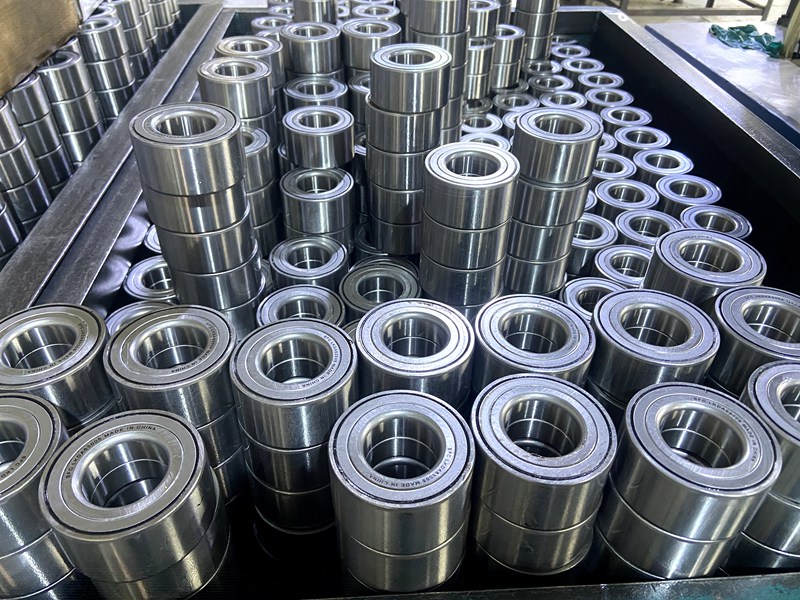

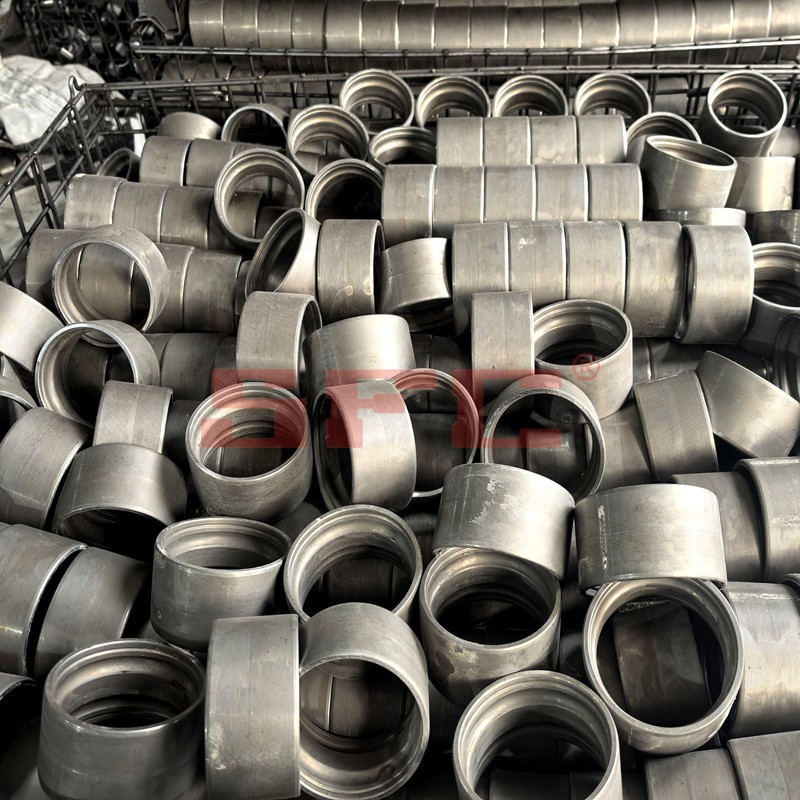

Raw Material Finish Product Automatic Measurement
OEM Cross Reference DAC28580044 | OPEL: 4708249 OPEL: 4711556 SUZUKI: 46860-62J00 SUZUKI: 46860-62J01 SUZUKI: 46860-62J01-000 SUZUKI: 46860-63J00 SUZUKI: 46860-63J00-000 SUZUKI: 46860-63J01 SUZUKI: 46860-63J01-000 SUZUKI: 4686062J00000 GENERAL MOTORS: 93192990 GENERAL MOTORS: 95507796 |
OEM Cross Reference DAC25520037 | NISSAN: 40214-00QAA NISSAN: 43210-AX000 NISSAN: 43210-AZ300 RENAULT: 6001548986 RENAULT: 7701205812 RENAULT: 7701208767 RENAULT: 7701462217 RENAULT: 7701465735 RENAULT: 8671095501 GENERAL MOTORS: 96471775 GENERAL MOTORS: 96471776 CITROËN/PEUGEOT: 3748.17 OPTIMAL: 702312 MOOG: 541009 MOOG: 541010 CHERY: S113301030 LIFAN: L3502126 |
Boost Your Vehicle’s Reliability Today!
Don’t compromise on safety – the Shandong Bearing Wheel Hub Beaing DAC25520037 DAC27530043 DAC28580044 ensures smooth, quiet rides and precise steering control. Order now for fast shipping and expert support!
More Durable Wheel Hub Unit model numbers,kindly contact us!
