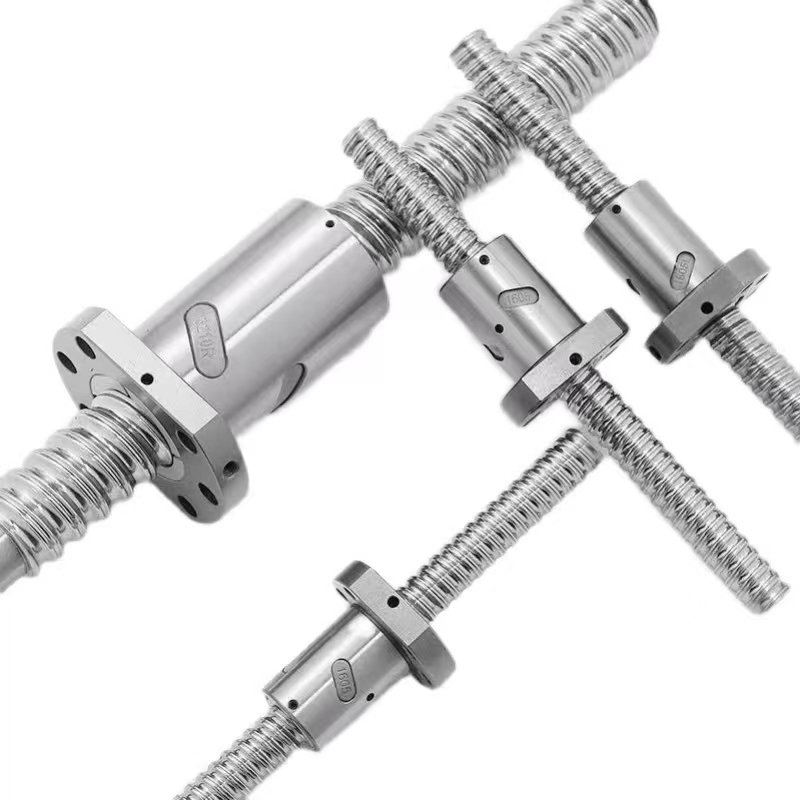

SFU1605 Ball Screw
Low Noise
High Efficiency
Low Friction
High Load
Long Service
High Precision
Walk Smoothly
TBI Technology & Size
Product Introduction

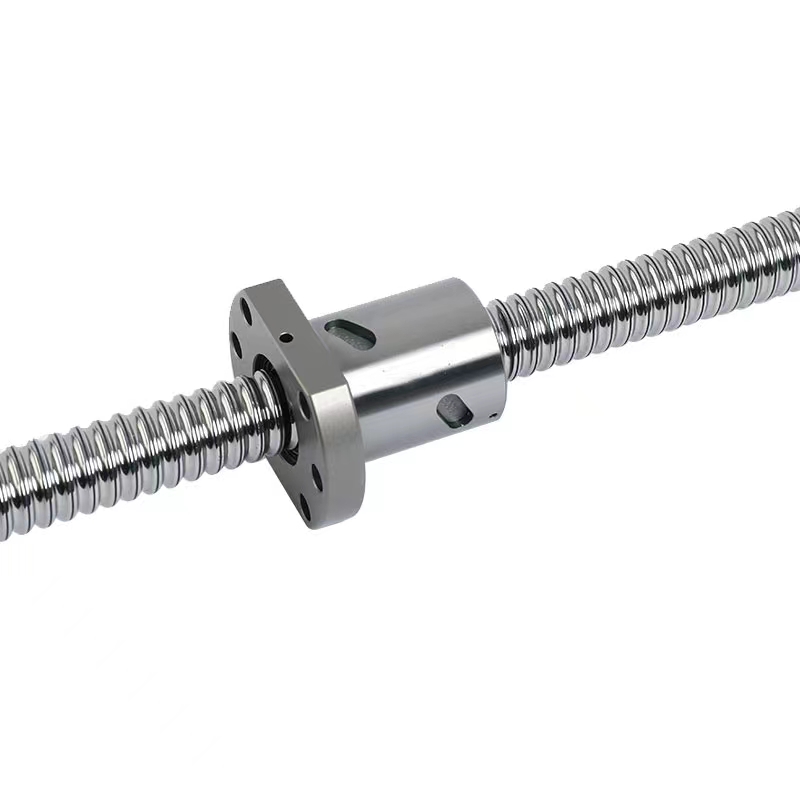

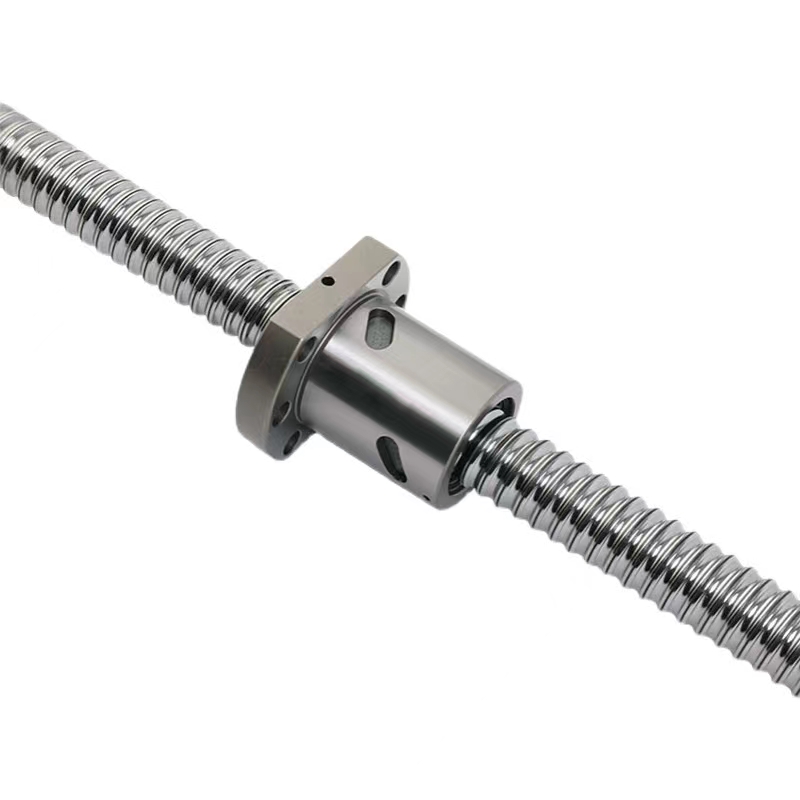

SFU1605 Ball Screw is one of the most commonly used ball screw products, and SFU1605-4 nuts are used in conjunction with
a screw with an outer diameter of 16mm. The entire length of the screw rod of SFU1605 is 6000MM, which can be cut according
to customer requirements.

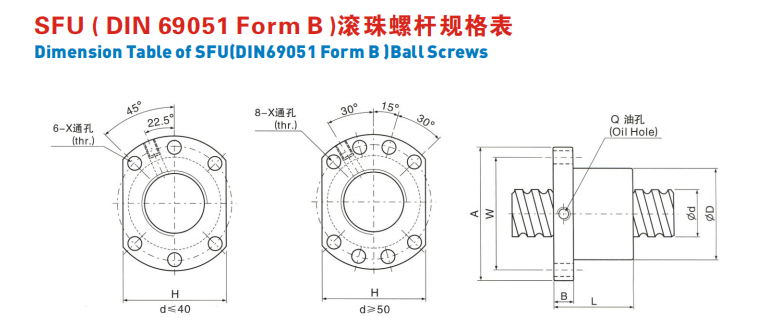

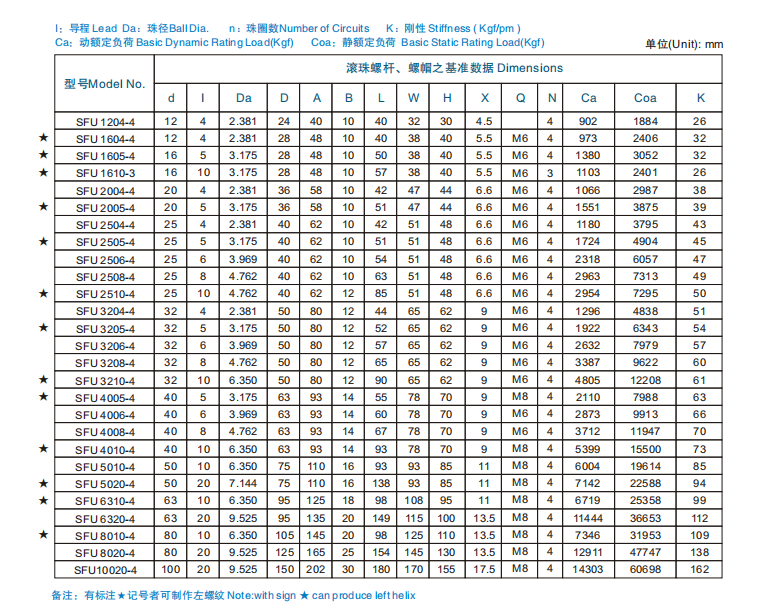

SFU1605 Ball Screw Dimensions
Outer diameter of screw rod -16mm
Lead - 5mm
Ball diameter - 3.175mm
Nut outer diameter -28mm
Nut length -50mm
Flange thickness -10mm
Flange width -48mm
Number of laps -4

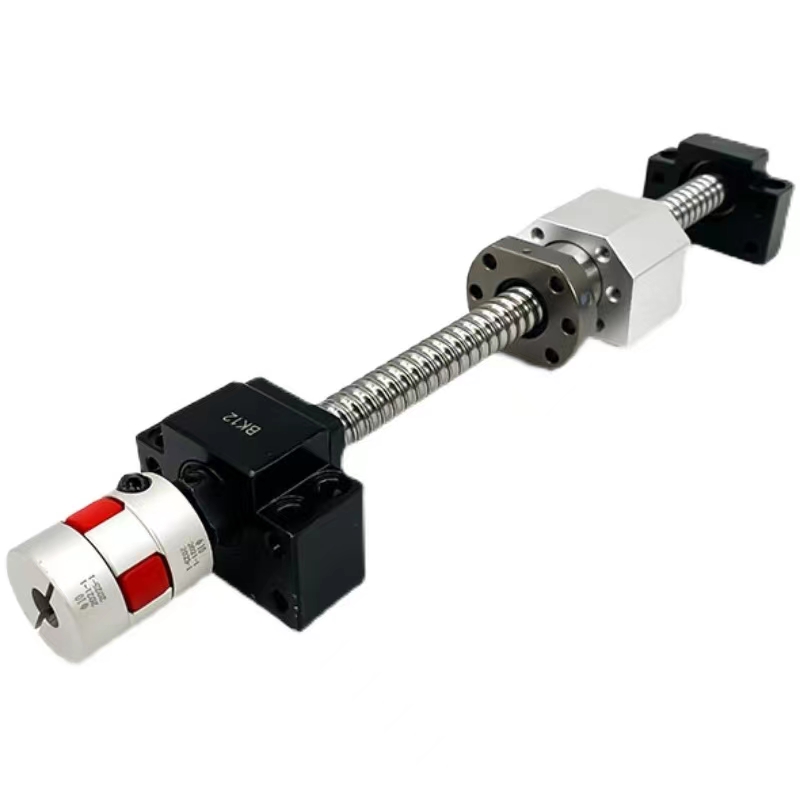

The SFU1605 Ball Screw rod can be cut arbitrarily, and both ends of the screw rod can be processed according to standard machining
dimensions or according to the drawings provided by the customer.

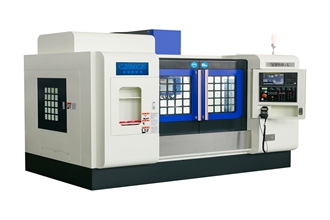

Application

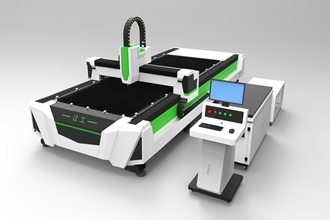

SFU1605 is mainly used in industries such as machine tools, industrial automation equipment, industrial machinery, semiconductor/photovoltaic equipment,
medical devices, 3C automation, transportation systems, electronic equipment, CNC machine tool equipment, and other industries that require transmission components

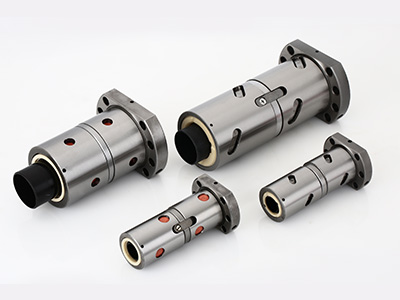

Our company specializes in producing TBI process ball screws, nuts with fine workmanship and high precision. There are also DFU
double nuts and SFY, SFS high-speed silent screw nuts, etc.
