6205 Deep Groove Ball Bearing

Low Noise

P0,P6,P5,P4

Flexible Rotation

Long Service

Gcr15 Material

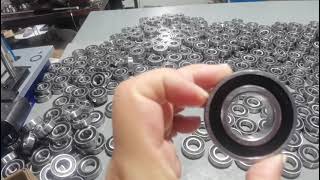

Contact Now Video

Product Details

Product Introduction

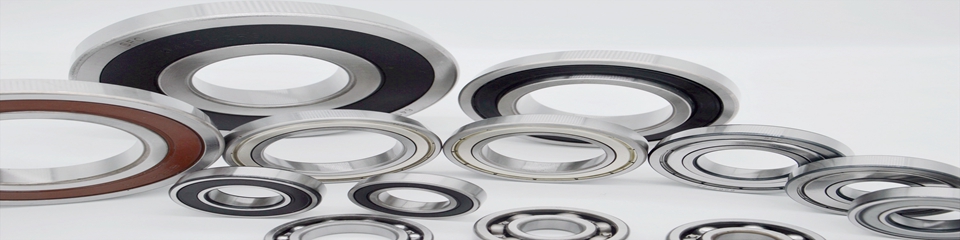

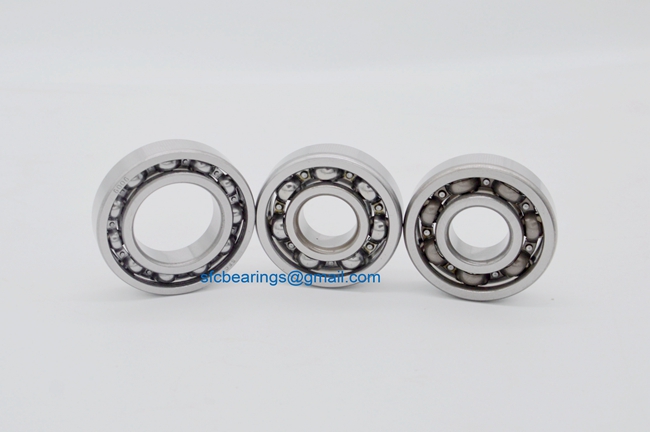

6205 Deep Groove Ball Bearing is the most commonly used model with simple structure and convenient use.

6205 Deep Groove Ball Bearing is composed of an outer ring, an inner ring, a group of steel balls and a group of cages.

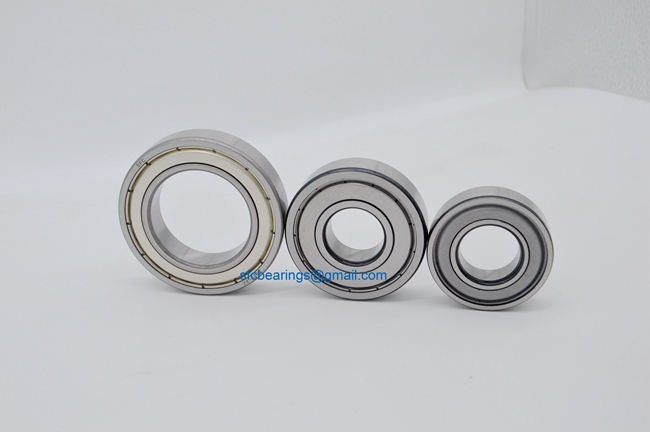

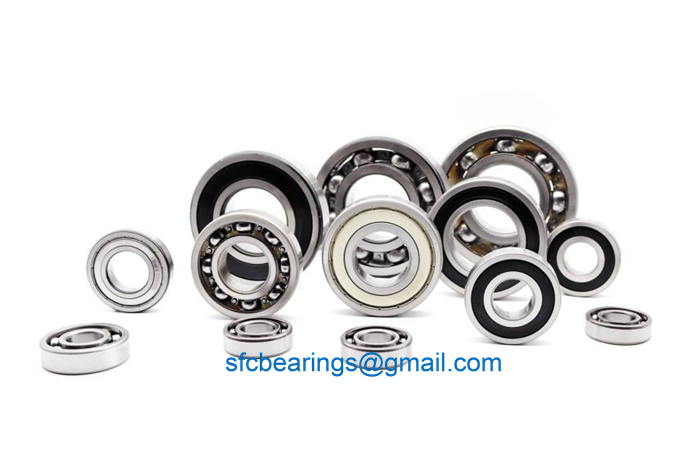

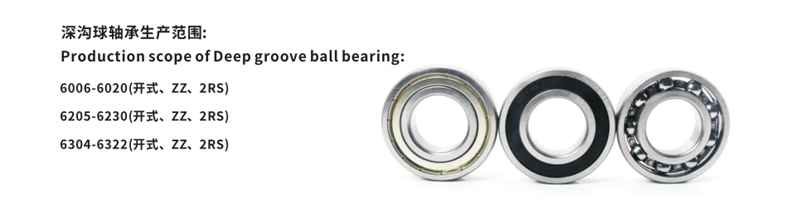

6205 Deep Groove Ball Bearing is divided into two types: open type and sealed type.

The sealing methods of 6205 Deep Groove Ball Bearing are divided into rubber sealing and metal sealing.

The sealed type can prevent dust from entering the bearing raceway and prevent grease from overflowing.

6205 Deep Groove Ball Bearing

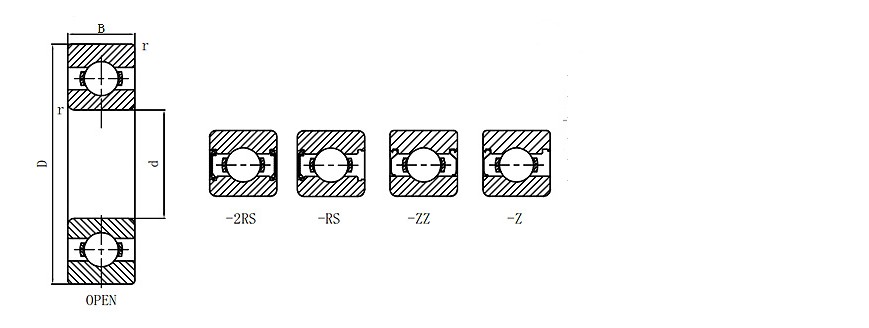

Product Specification

Bearing No.			Boundary Dimensions(mm)			Basic Load Ratings(KN)		Weight
OPEN	Shields	Seals	d	D	B	Cr	Cor	Kg(pc)
6200	ZZ	2RS	10	30	9	5.10	2.40	0.032
6201	ZZ	2RS	12	32	10	6.80	3.05	0.037
6202	ZZ	2RS	15	35	11	7.65	3.75	0.045
6203	ZZ	2RS	17	40	12	9.55	4.80	0.065
6204	ZZ	2RS	20	47	14	12.80	6.65	0.106
6205	ZZ	2RS	25	52	15	14.00	7.85	0.128
6206	ZZ	2RS	30	62	16	19.50	11.30	0.199
6207	ZZ	2RS	35	72	17	25.70	15.40	0.288
6208	ZZ	2RS	40	80	18	29.10	17.80	0.366
6209	ZZ	2RS	45	85	19	32.70	20.30	0.407
6210	ZZ	2RS	50	90	20	35.10	23.30	0.463
6211	ZZ	2RS	55	100	21	43.40	29.40	0.607
6212	ZZ	2RS	60	110	22	52.40	36.20	0.783
6213	ZZ	2RS	65	120	23	57.20	40.10	0.990
6214	ZZ	2RS	70	125	24	62.20	44.10	1.070
6215	ZZ	2RS	75	130	25	67.40	48.30	1.180
6216	ZZ	2RS	80	140	26	72.70	53.00	1.400
6217	ZZ	2RS	85	150	28	84.00	61.90	1.790
6218	ZZ	2RS	90	160	30	96.10	71.50	2.150
6219	ZZ	2RS	95	170	32	109.00	81.90	2.620
6220	ZZ	2RS	100	180	34	122.00	93.10	3.140
6221	ZZ	2RS	105	190	36	133.00	105.00	3.700
6222	ZZ	2RS	110	200	38	144.00	117.00	4.360
6224	ZZ	2RS	120	215	40	155.00	131.00	5.150
6226	ZZ	2RS	130	230	40	167.00	146.00	5.820
6228	ZZ	2RS	140	250	42	166.00	150.00	7.450

Application

6205 Deep Groove Ball Bearing usually be used for motors, conveying equipment, agricultural machinery, automobiles, motorcycles, engineering machinery, etc. It is the most widely used bearing in the mechanical industry

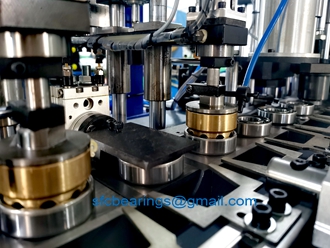

Our company specializes in the production of 6205 Deep Groove Ball Bearing. We introduce automatic grinding machine equipments and assembly equipments, use high-quality Gcr15 steel, and pass 100% inspection before leaving the factory. It can meet the quality requirements of customers in different countries.

Our Factory Can Provide OEM Production According To Customer Requirements.

SFC BEARINGS - RELIABLE PARTNER IN BEARING FIELD！

Bearing No.			Boundary Dimensions(mm)			Basic Load Ratings(KN)		Weight
OPEN	Shields	Seals	d	D	B	Cr	Cor	Kg(pc)
6200	ZZ	2RS	10	30	9	5.10	2.40	0.032
6201	ZZ	2RS	12	32	10	6.80	3.05	0.037
6202	ZZ	2RS	15	35	11	7.65	3.75	0.045
6203	ZZ	2RS	17	40	12	9.55	4.80	0.065
6204	ZZ	2RS	20	47	14	12.80	6.65	0.106
6205	ZZ	2RS	25	52	15	14.00	7.85	0.128
6206	ZZ	2RS	30	62	16	19.50	11.30	0.199
6207	ZZ	2RS	35	72	17	25.70	15.40	0.288
6208	ZZ	2RS	40	80	18	29.10	17.80	0.366
6209	ZZ	2RS	45	85	19	32.70	20.30	0.407
6210	ZZ	2RS	50	90	20	35.10	23.30	0.463
6211	ZZ	2RS	55	100	21	43.40	29.40	0.607
6212	ZZ	2RS	60	110	22	52.40	36.20	0.783
6213	ZZ	2RS	65	120	23	57.20	40.10	0.990
6214	ZZ	2RS	70	125	24	62.20	44.10	1.070
6215	ZZ	2RS	75	130	25	67.40	48.30	1.180
6216	ZZ	2RS	80	140	26	72.70	53.00	1.400
6217	ZZ	2RS	85	150	28	84.00	61.90	1.790
6218	ZZ	2RS	90	160	30	96.10	71.50	2.150
6219	ZZ	2RS	95	170	32	109.00	81.90	2.620
6220	ZZ	2RS	100	180	34	122.00	93.10	3.140
6221	ZZ	2RS	105	190	36	133.00	105.00	3.700
6222	ZZ	2RS	110	200	38	144.00	117.00	4.360
6224	ZZ	2RS	120	215	40	155.00	131.00	5.150
6226	ZZ	2RS	130	230	40	167.00	146.00	5.820
6227	ZZ	2RS	140	250	42	166.00	150.00	7.450
