6306 2RS Bearing
Low Noise
Flexible Rotation
Long Service Life
Gcr15 Material
Good Sealing Performance
P0、P6、P5、P4
C0,C2,C3,C4
Product Introduction
6306 2RS Bearing belongs to Deep Groove Ball Bearing series，
The size of 6306 2RS Bearing is 30mm*72mm*19mm，6306 2RS Bearing mainly bears radial load, but also can bear radial load and axial load at the same time. When 6306 2RS Bearing only bears radial load, the contact angle is zero. When 6306 2RS Bearing has a large radial clearance, 6306 2RS Bearing has the performance of angular contact bearing, and can withstand a large axial load. The friction coefficient of 6306 2RS Bearing is very small, and the limiting speed is also very high.

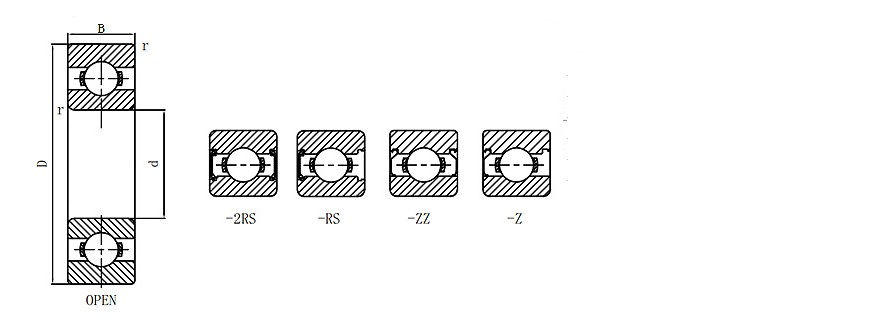

6306(Open Type）， 6305-2RS（Rubber Seals)，6305ZZ（Steel Seals）
| Bearing No. | Boundary Dimensions(mm) | Basic Load Ratings(KN) | Weight | |||||
| OPEN | Shields | Seals | d | D | B | Cr | Cor | Kg(pc) |
| 6300 | ZZ | 2RS | 10 | 35 | 11 | 8.10 | 3.45 | 0.053 |
| 6301 | ZZ | 2RS | 12 | 37 | 12 | 9.70 | 4.20 | 0.060 |
| 6302 | ZZ | 2RS | 15 | 42 | 13 | 11.40 | 5.45 | 0.082 |
| 6303 | ZZ | 2RS | 17 | 47 | 14 | 13.60 | 6.65 | 0.115 |
| 6304 | ZZ | 2RS | 20 | 52 | 15 | 15.90 | 7.85 | 0.144 |
| 6305 | ZZ | 2RS | 25 | 62 | 17 | 20.60 | 11.30 | 0.232 |
| 6306 | ZZ | 2RS | 30 | 72 | 19 | 26.70 | 15.00 | 0.346 |
| 6307 | ZZ | 2RS | 35 | 80 | 21 | 33.40 | 19.30 | 0.457 |
| 6308 | ZZ | 2RS | 40 | 90 | 23 | 40.70 | 24.00 | 0.633 |
| 6309 | ZZ | 2RS | 45 | 100 | 25 | 48.90 | 29.50 | 0.833 |
| 6310 | ZZ | 2RS | 50 | 110 | 27 | 62.00 | 38.30 | 1.070 |
| 6311 | ZZ | 2RS | 55 | 120 | 29 | 71.60 | 45.00 | 1.370 |
| 6312 | ZZ | 2RS | 60 | 130 | 31 | 81.90 | 52.20 | 1.700 |
| 6313 | ZZ | 2RS | 65 | 140 | 33 | 92.70 | 59.90 | 2.080 |
| 6314 | ZZ | 2RS | 70 | 150 | 35 | 104.00 | 68.20 | 2.520 |
| 6315 | ZZ | 2RS | 75 | 160 | 37 | 113.00 | 77.20 | 3.020 |
| 6316 | ZZ | 2RS | 80 | 170 | 39 | 123.00 | 86.70 | 3.590 |
| 6317 | ZZ | 2RS | 85 | 180 | 41 | 133.00 | 96.80 | 4.230 |
| 6318 | ZZ | 2RS | 90 | 190 | 43 | 143.00 | 107.00 | 4.910 |
| 6319 | ZZ | 2RS | 95 | 200 | 45 | 153.00 | 119.00 | 5.670 |
| 6320 | ZZ | 2RS | 100 | 215 | 47 | 173.00 | 141.00 | 7.000 |
| 6321 | ZZ | 2RS | 105 | 225 | 49 | 184.00 | 153.00 | 8.050 |
| 6322 | ZZ | 2RS | 110 | 240 | 50 | 205.00 | 180.00 | 9.540 |
| 6324 | ZZ | 2RS | 120 | 260 | 55 | 207.00 | 135.00 | 12.500 |
| 6326 | ZZ | 2RS | 130 | 280 | 58 | 229.00 | 214.00 | 15.100 |
| 6328 | ZZ | 2RS | 140 | 300 | 62 | 253.00 | 246.00 | 19.400 |
Application

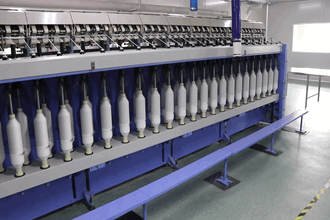

6306 2RS Bearing can be used for: plant protection machinery, roller scraper dryer, digital printing machine, nonwoven machinery, shaping machine, dynamic pressure guide rail, hydraulic beneficiation equipment, coating machine, high-frequency welding machine, textile supporting electrical instrument equipment, press, anechoic chamber, bevel gear reducer, industrial dryer, corrugated pipe equipment, bean product processing equipment, reboiler, gantry crane, etc.

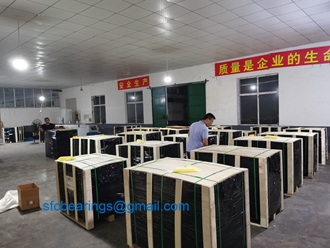

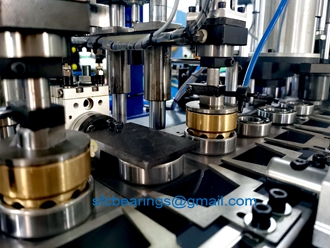

Our factory specializes in producing Deep Groove Ball Bearing for more than 20 years. We have advanced grinding and assembly equipment, using high-end Gcr15 material. During the production process, professional technical inspectors strictly control the quality standards of each link to ensure that each 6306 2RS Bearing is tested before leaving the factory. We have won the trust and praise of our customers with our cost-effective products, stable quality and extremely fast delivery speed. We mainly export to Southeast Asia, Europe, South America, Türkiye, Dubai, Egypt and other countries and regions
