R12 Deep Groove Ball Bearing

Low Friction

Low Noise

Flexible Rotation

Long Service Life

Universal Application

Gcr15 Material

G16,G10 Steel Balls

P0、P6、P5、P4

C0,C2,C3,C4

Contact Now

Product Details

Product Introduction

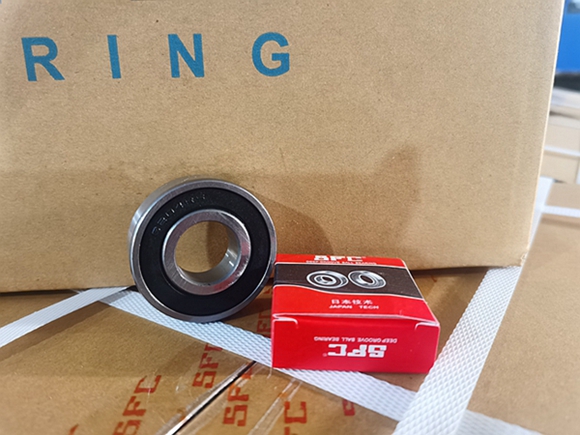

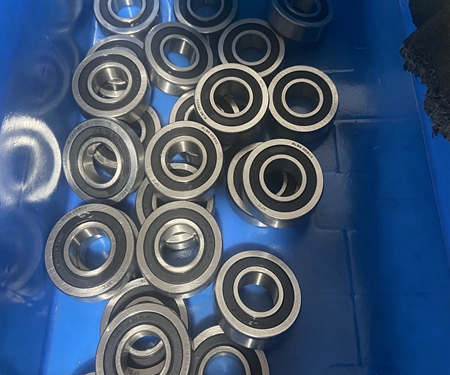

R12 Deep Groove Ball Bearing belongs to the Inch size deep groove ball bearing, R series.

Basic dimension: inner diameter (d) 19.05 Outer diameter (D) 41.275 Thickness (B) 7.938

Rated load (N): Dynamic load 9570.96 Static load 5080.32

Limiting Speeds (rpm): Oil lubrication (oil) 20000

R series on below:

Number	Bore/d	Tolerance+.0000 minus	ODD	Width-B			fillet radius	Basic LoadRatings		Weight/Kg	Limiting Speed(rpm)
Number	Bore/d	Tolerance+.0000 minus	ODD	Open iinch	Sealed/Shielded inch	Tolerance+.0000 minus	fillet radius	Dynamic/Cr	Static/Cor	Weight/Kg	Oil	Grease
R2	0.1250	0.0003	0.3750	0.1562	0.1562	0.005	0.005	641	222	0.001	58000	49000
R2A	0.1250	0.5	0.5000	0.1719	0.1719	0.005	0.005	1148	396	0.003	51000	42000
R3	0.1875	0.0003	0.5000	0.1562	0.1562	0.005	0.005	1312	492	0.003	48000	41000
R3A	0.1875	0.0003	0.5000	0.196	0.196	0.005	0.005	1312	489	0.002	48000	41000
R4	0.2500	0.0003	0.6250	0.196	0.196	0.005	0.005	1601	667	0.002	43000	36000
R4A	0.2500	0.0003	0.6250	0.196	0.196	0.005	0.005	1601	667	0.002	43000	36000
R6	0.3750	0.0003	0.8750	0.2188	0.2182	0.005	0.006	3350	1410	0.011	37000	31000
R8	0.5000	0.0003	1.1250	0.25	0.3125	0.005	0.006	5116	2402	0.018	30000	26000
R10	0.6250	0.0003	1.3750	0.2812	0.3438	0.005	0.012	5961	3238	0.037	24000	20000
R12	0.7500	0.0004	1.6250	0.3125	0.4375	0.005	0.012	9386	4982	0.047	21000	18000
R14	0.8750	0.0004	1.8750	0.375	0.5000	0.005	0.012	10098	5827	0.071	18000	15000
R16	1.0000	0.0004	2.0000	0.375	0.5000	0.005	0.012	10098	5827	0.085	16000	14000
R18	1.1250	0.0004	2.1250	0.0005	0.3750	0.005	0.012	13256	8274	0.090	15000	13000
R20	1.2500	0.0005	2.2500	0.375	0.5000	0.005	0.012	13256	8274	0.095	14000	12000
R22	1.3750	0.0005	2.5000	0.4375	0.5625	0.005	0.012	15970	10320	0.105	12500	11000
R24	1.5000	0.0005	2.6250	0.4375	0.5625	0.005	0.012	16770	11520	0.140	11500	10000

R12 Deep Groove Ball Bearing

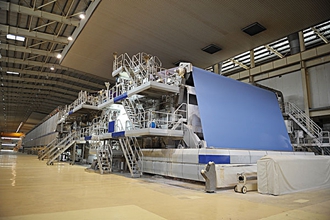

Application Area

R12 Deep Groove Ball Bearing mainly used for low-temperature crushers, magnetic card locks, automotive testing equipment, electrical instruments, portable ultrasonic equipment, exhaust equipment accessories, micro cylinders, electric soldering iron, bearing seats with flanges, automotive lighting and other equipment.

R12 Deep Groove Ball Bearing

Contact Us

Our company mainly deals in deep groove ball bearings, tapered roller bearings, and outer spherical bearings, accepting foreign trade orders, ensuring quality, offering favorable prices, and selling well both domestically and internationally. If you are interested in R12 Deep Groove Ball Bearing, please contact us.
