UCP210-31 Pillow Block Ball Bearing
High Load
Flexible Rotation
Excellent Sealing
Long Service Life
Gcr15 Material
P0,P6,P5,P4
HT200 Housing
Stretch Resistance
Product

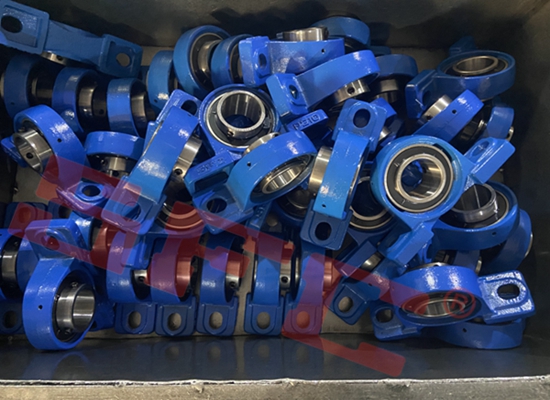

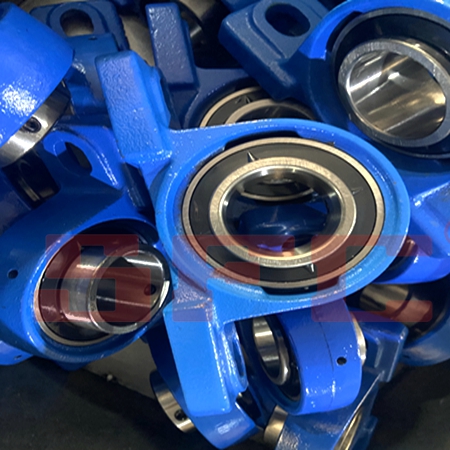

The UCP210-31 pillow block ball bearing belongs to the UCP type bearing seat installation unit, with a cast iron casing, a long base, an outer spherical ball bearing, fixed with flat head screws, and an RSR seal.
The UCP210-31 pillow block ball bearing has excellent performance in terms of speed, load, and wear resistance.

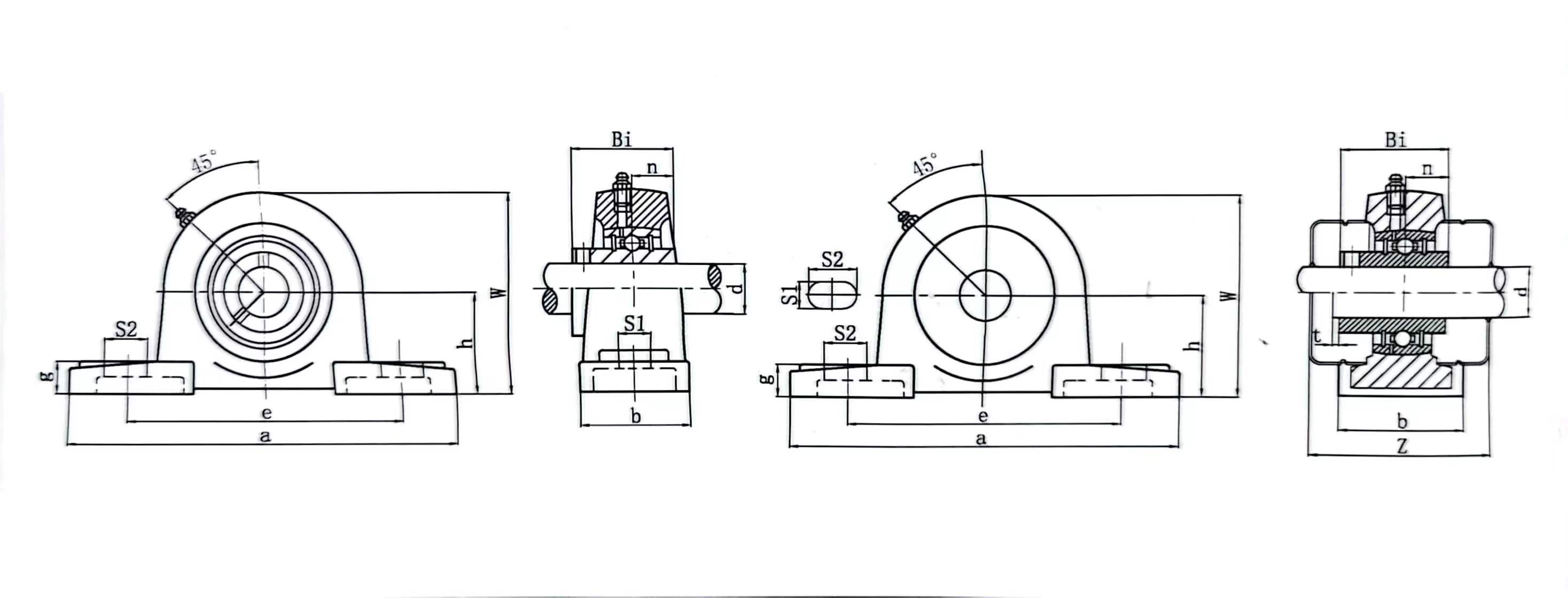

| Unit No. | Shaft Dia. | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Weight(kg) | |||||||||||
| in | mm | h | a | e | b | S2 | S1 | g | w | Bi | n | mm | in | ||||
| UCP210-29 | 1-13/16 | 57.2 | 206 | 159 | 60 | 23 | 20 | 21 | 114 | 51.6 | 19 | M16 | 5/8 | UC210-29 | P210 | 4.02 | |
| UCP210-30 | 1-7/8 | UC210-30 | |||||||||||||||
| UCP210-31 | 1-15/16 | UC210-31 | |||||||||||||||
| UCP210-32 | 2 | UC210-32 | |||||||||||||||
| UCP210 | 50 | UC210 | |||||||||||||||
Application

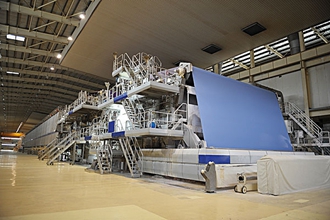

UCP210-31 Pillow Block Ball Bearing with seat has a compact structure, convenient loading and unloading, and perfect sealing, suitable for simple support. It is commonly used in mining, metallurgy, agriculture, chemical industry, textile, printing and dyeing, conveying machinery, etc.
Contact Us
If you need UCP210-31 Pillow Block Ball Bearing, please contact us, send your requirements to me.Like items number,quality grade,packing,quantity,payment method.We will provide the best price for you.
Email: sfcbearings1@gmail.com(Cathy) sfcbearings@gmail.com(Alina)
