22215CA/W33 Spherical Roller Bearing
Low Noise
P0,P6,P5,P4
Flexible Rotation
Long Service
Gcr15 Material
Product Introduction
The 22215CA/W33 spherical roller bearing features: high temperature resistance, low noise and high precision. Use high quality bearing steel.
Detailed specifications of 22215CA/W33 spherical roller bearing:
Inner diameter (mm): 75.00 Outer diameter (mm): 130 Width (mm): 31.00
| Items | Dimensions | Weight(kg) | ||
| inner diameter | outer diameter | thickness | ||
| 22205 | 25 | 52 | 18 | 0.177 |
| 22206 | 30 | 62 | 20 | 0.283 |
| 22207 | 35 | 72 | 23 | 0.43 |
| 22208 | 40 | 80 | 23 | 0.55 |
| 22209 | 45 | 85 | 23 | 0.59 |
| 22210 | 50 | 90 | 23 | 0.614 |
| 22211 | 55 | 100 | 25 | 0.847 |
| 22212 | 60 | 110 | 28 | 1.22 |
| 22213 | 65 | 120 | 31 | 1.63 |
| 22214 | 70 | 125 | 31 | 1.66 |
| 22215 | 75 | 130 | 31 | 1.75 |
| 22216 | 80 | 140 | 33 | 2.2 |
| 22217 | 85 | 150 | 36 | 2.8 |
| 22218 | 90 | 160 | 40 | 4 |
| 22219 | 95 | 170 | 43 | 4.2 |
| 22220 | 95 | 170 | 43 | 5 |
| 22222 | 100 | 180 | 46 | 7.4 |
| 22224 | 120 | 215 | 58 | 9.2 |
| 22226 | 130 | 230 | 64 | 11.2 |
| 22228 | 140 | 250 | 68 | 14.5 |
| 22230 | 150 | 270 | 73 | 18.5 |
| 22232 | 160 | 290 | 80 | 22.2 |
| 22234 | 170 | 310 | 86 | 29 |
| 22236 | 180 | 320 | 86 | 30 |
| 22238 | 190 | 340 | 92 | 35.3 |
| 22240 | 200 | 360 | 98 | 47.7 |
| 22244 | 220 | 400 | 108 | 61.5 |
Application

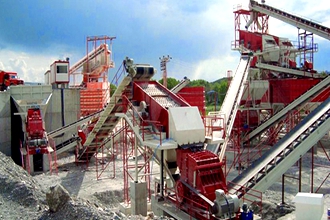

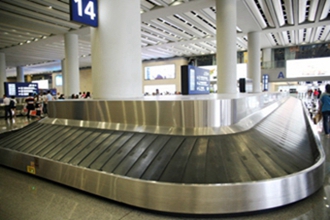

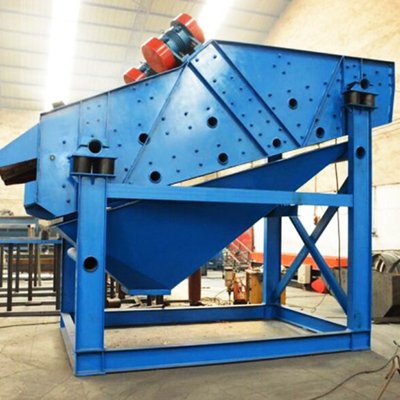

22215CA/W33 Spherical Roller Bearing mainly used in steel mills, metallurgy, glass, blast furnaces, painting equipment, mining machinery, conveyors, transmission devices, boiler fans, vacuum equipment, kiln cars, machine tools, engineering machinery, conveying equipment, particle machines, vibrating screens, automobiles, petroleum, electricity, motors, wind power equipment, and other high-temperature operating machinery.
We will provide 22215CA/W33 Spherical Roller Bearing for you,send me your requierments,I will try my best to solve your problem.Remember.
| Items | Dimensions | Weight(kg) | ||
| inner diameter | outer diameter | thickness | ||
| 22205 | 25 | 52 | 18 | 0.177 |
| 22206 | 30 | 62 | 20 | 0.283 |
| 22207 | 35 | 72 | 23 | 0.43 |
| 22208 | 40 | 80 | 23 | 0.55 |
| 22209 | 45 | 85 | 23 | 0.59 |
| 22210 | 50 | 90 | 23 | 0.614 |
| 22211 | 55 | 100 | 25 | 0.847 |
| 22212 | 60 | 110 | 28 | 1.22 |
| 22213 | 65 | 120 | 31 | 1.63 |
| 22214 | 70 | 125 | 31 | 1.66 |
| 22215 | 75 | 130 | 31 | 1.75 |
| 22216 | 80 | 140 | 33 | 2.2 |
| 22217 | 85 | 150 | 36 | 2.8 |
| 22218 | 90 | 160 | 40 | 4 |
| 22219 | 95 | 170 | 43 | 4.2 |
| 22220 | 95 | 170 | 43 | 5 |
| 22222 | 100 | 180 | 46 | 7.4 |
| 22224 | 120 | 215 | 58 | 9.2 |
| 22226 | 130 | 230 | 64 | 11.2 |
| 22228 | 140 | 250 | 68 | 14.5 |
| 22230 | 150 | 270 | 73 | 18.5 |
| 22232 | 160 | 290 | 80 | 22.2 |
| 22234 | 170 | 310 | 86 | 29 |
| 22236 | 180 | 320 | 86 | 30 |
| 22238 | 190 | 340 | 92 | 35.3 |
| 22240 | 200 | 360 | 98 | 47.7 |
| 22244 | 220 | 400 | 108 | 61.5 |
