22334 Self-aligning Roller Bearing

Product Introduction

22334 Self-aligning Roller Bearing can also be called Spherical Roller Bearing 22334.

22334 Self-aligning Roller Bearing Specification:

Inner diameter: 170 mm     Outer diameter: 360 mm     Thickness: 120 mm     Dynamic load: 1580000     Static load: 2110000

Items	Dimensions			Weight(kg)
	inner diameter	outer diameter	thickness
22205	25	52	18	0.177
22206	30	62	20	0.283
22207	35	72	23	0.43
22208	40	80	23	0.55
22209	45	85	23	0.59
22210	50	90	23	0.614
22211	55	100	25	0.847
22212	60	110	28	1.22
22213	65	120	31	1.63
22214	70	125	31	1.66
22215	75	130	31	1.75
22216	80	140	33	2.2
22217	85	150	36	2.8
22218	90	160	40	4
22219	95	170	43	4.2
22220	95	170	43	5
22222	100	180	46	7.4
22224	120	215	58	9.2
22226	130	230	64	11.2
22228	140	250	68	14.5
22230	150	270	73	18.5
22232	160	290	80	22.2
22234	170	310	86	29
22236	180	320	86	30
22238	190	340	92	35.3
22240	200	360	98	47.7
22244	220	400	108	61.5
223series
22308	40	90	33	1.03
22309	45	100	36	1.4
22310	50	110	40	1.9
22311	55	120	43	2.4
22312	60	130	46	3
22313	65	140	48	3.6
22314	70	150	51	4.4
22315	75	160	55	5.4
22316	80	170	58	6.4
22317	85	180	60	7.4
22318	90	190	64	8.8
22319	95	200	67	10.3
22320	100	215	73	13
22322	110	240	80	18.1
22324	120	260	86	22
22326	130	280	93	29
22328	140	300	102	36
22330	150	320	108	43
22332	160	340	114	51
22334	170	360	120	60
22336	180	380	126	70
22338	190	400	132	81
22340	200	420	138	94
22344	220	460	145	120
230Series
23020	100	150	37	2.51
23022	110	170	45	3.9
23024	120	180	46	4.3
23026	130	200	52	6.2
23028	140	210	53	6.7
23030	150	225	56	8.14
23032	160	240	60	10
23034	170	260	67	13
23036	180	280	74	17.6
23038	190	290	75	20
23040	200	310	82	24
23044	220	340	90	28.8
23048	240	360	92	35.5
23052	260	400	104	51.5
23056	280	420	106	62
23060	300	460	118	75.2
23064	320	480	121	81.5
231Series
23120	100	165	52	4.43
23121	105	175	56	6.64
23122	110	180	56	3.1
23124	120	200	62	7.63
23126	130	210	64	9.5
23128	140	225	68	10.9
23130	150	250	80	16.1
23132	160	270	86	19.7
23134	170	280	88	22
23136	180	300	96	27.1
23138	190	20	104	35.3
23140	200	340	112	50.7
23144	220	370	120	55
23148	240	400	128	55.5
23152	260	440	144	95.3
23156	280	460	146	103

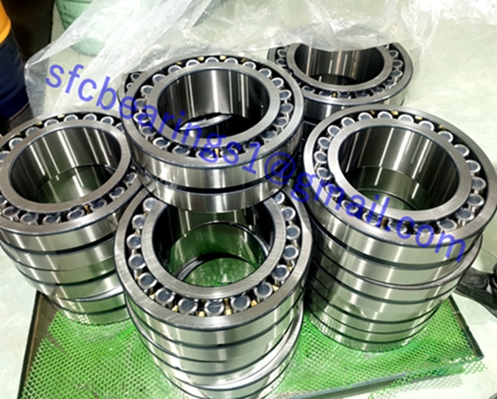

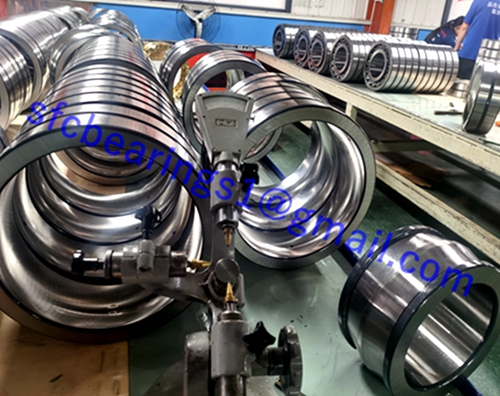

22334 Self-aligning Roller Bearing / production workshop real picture details

‍

Application

22334 Self-aligning Roller Bearing are mainly used for transmission belts, supermarket shopping carts, gas turbines, cloth wheels, inflatable pumps, tap grinders, gear cutters, electric valves, motors, automotive lamps and other equipment.

Contact Us

When you need bearings,like 22334 Self-aligning Roller Bearing. We can handle OEM orders.If you have any question,don't hesitate to contact us. Win trust with prefessionalism,quality,and service.
