32909 Taper Roller Bearing

High Radial and Axial Bearing Capacity

Low Friction

Low Noise

Flexible Rotation

Long Service

Gcr15 Material Parts

100% Size Full Inspection

Stable operation

Detachable and interchangeable components

P0,P6,P5

Contact Now Video

Product Details

Product Introduction

32909 Taper Roller Bearing is one of the British tapered roller bearings of the Super light wide， and 32909 Taper Roller Bearing is a metric size bearing. The inner race raceway surface, outer race raceway surface, and the vertices of each tapered surface of the 32909 Taper Roller Bearing intersect at a point on the centerline of the bearing. so 32909 Taper Roller BearingCan withstand both axial and radial pressures simultaneously.

Bearing Type		Basic dimensions			Limit speed		Rated load		Weight(kg)
New Type	Original Type	(mm)d	(mm)D	Assembly heigh(mm)T	Grease	Oil	Dynamic	Static
32906	2007906E	30	47	12	7800	9900	17000	23200	0.0721
32907	2007907E	35	55	14	6700	8400	25400	34700	0.114
32908	2007908E	40	62	15	5900	7500	31600	46100	0.155
32909	2007909E	45	68	15	5300	6700	32000	48400	0.18
32910	2007910E	50	72	15	4900	6200	36900	56100	0.181
32911	2007911E	55	80	17	4400	5600	41500	66700	0.262
32912	2007912E	60	85	17	4100	5200	46100	73000	0.279
32913	2007913E	65	90	17	3900	4900	45400	73200	0.297
32914	2007914E	70	100	20	3500	4500	70800	114700	0.481
32915	2007915E	75	105	20	3300	4200	78200	124700	0.502
32916	2007916E	80	110	20	3200	4000	79300	129000	0.528
32917	2007917E	85	120	23	2900	3700	96900	164100	0.765
32918	2007918E	90	125	23	2800	3500	95800	164400	0.799
32919	2007919E	95	130	23	2700	3400	97100	169800	0.832
32920	2007920E	100	140	25	2500	3200	126600	218500	1.149
32921	2007921E	105	145	25	2400	3000	128000	225600	1.16
32922	2007922E	110	150	25	2300	2900	129700	232500	1.245
32924	2007924E	120	165	29	1800	2400	172000	318000	1.78
32926	2007926E	130	180	32	1900	2500	206000	380600	2.345
32928	2007928E	140	190	32	1600	2000	208000	392000	2.47
32930	2007930E	150	210	38	1600	2100	286000	536000	3.56
32934	2007934E	170	230	38	1400	1900	280100	561500	4.33

Application

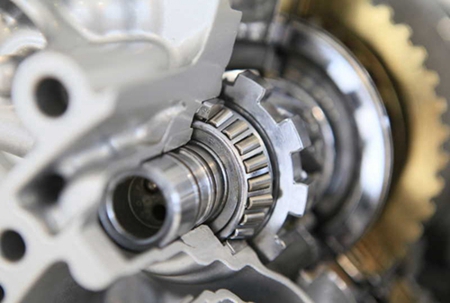

32909 Taper Roller Bearing are generally used in: vibration dryer, low-speed reducer, calender, Sander, steel rolling mill, gearbox, forklift, grinder, counter flow cooling tower, forklift, curve guide rail, pressure welding machine, plastic color mixing machine, glue beater, granulating and drying equipment, softened water equipment, cooling pipe, wall heat exchanger, photo printer, extrusion equipment, grinder, plastic machinery, construction machinery, wire cutting, wire stripper, Kneader reactor, tubular reactor, medical equipment and other equipment.

32909 Taper Roller Bearing

32909 Taper Roller Bearing is one of the main products of SFC brand, and 32909 Taper Roller Bearing is suitable for a wide range of working conditions.

We are a factory, and at the same price can provide better quality products. If you have a demand for 32309 bearings or any issues. Please contact us!

32909 Taper Roller Bearing

Alina Manager

Mobile: +8615806967023

WhatsApp: +8615806967023

WeChat: +8615806967023

Email：sfcbearings@gmail.com

Factory Address: Industrial Zone,Yandian Town,Linqing,Shandong,China
