14136A/276 Inch Size Tapered Roller Bearing
High Radial and Axial Bearing Capacity
Low Friction
Low Noise
Flexible Rotation
Long Service
Gcr15 Material Parts
100% Size Full Inspection
Stable operation
Detachable and interchangeable components
P0,P6,P5
Product Introduction
14136A/276 Inch Size Tapered Roller Bearing is designed to align the vertices of the inner race raceway surface, outer race raceway surface, and roller rolling surface at a point on the bearing centerline.Industrial packaging or single cardboard box packaging can be used.
In addition to the metric series products, there are also various English series products.Like 14136A/276 Inch Size Tapered Roller Bearing ,Suitable for withstanding heavy loads and impact loads.

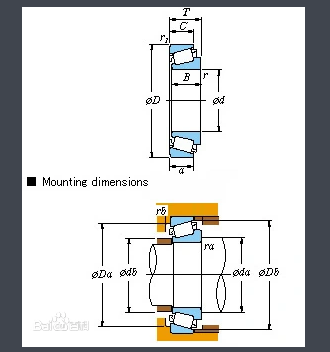

14136A/276 Inch Size Tapered Roller Bearing details:
nner diameter: 34.925mm
Outer diameter: 69.012mm
Weight: 0.387kg
B (thickness): 26.721mm
R (minimum): 0.8
R1 (minimum): 1.2
Cr (rated dynamic load): 46.1kN
Cor (rated static load): 55kN
Grease: 5900rpm
Oil lubrication: 7800rpm
Application Area

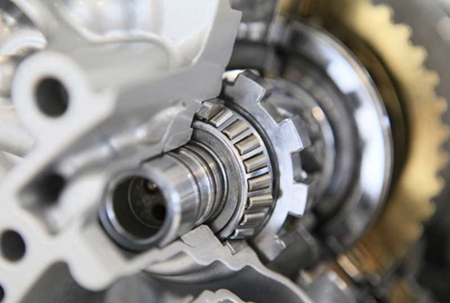

14136A/276 Inch Size Tapered Roller Bearing widely used in food machinery, agricultural machinery, assembly line equipment, fans, vehicle front wheels, differentials and small gear configurations, conveyor rollers, machine tool shafts, and trailer wheels.
Contact Us
In addition to 14136A/276 Inch Size Tapered Roller Bearing, our company also recommends a series of bearings suitable for extreme environments such as high speed and high load for you.Welcome your inquiry.
