30206 Tapered Roller Bearing

High Radial and Axial Bearing Capacity

Low Friction

Low Noise

Flexible Rotation

Long Service

Gcr15 Material Parts

100% Size Full Inspection

Detachable and interchangeable components

P0,P6,P5

Contact Now Video

Product Details

Product Introduction

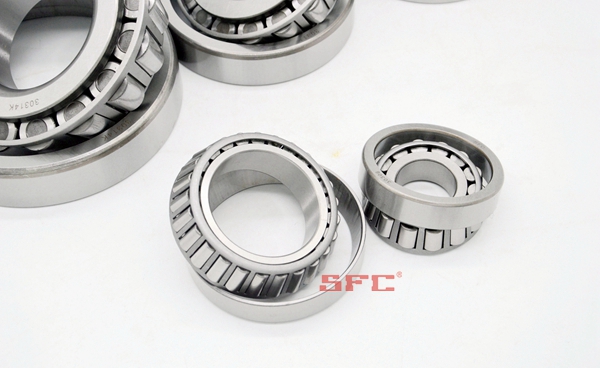

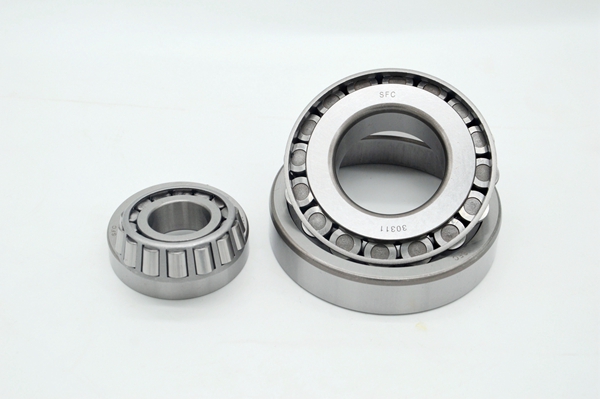

30206 Tapered Roller Bearing belongs to a single row tapered roller bearing, 30206 Tapered Roller Bearing is separable and consists of an inner ring, a retainer, and some rolling elements. It is used together with the outer ring.

Bearing Type		Basic dimensions			Limit speed		Rated load		Weight（kg）
New Type	Original Type	（mm）d	(mm) D	Assembly height(mm）	Grease	Oil	Dynamic	Static
30203	7203E	17	40	13.25	10000	14000	20800	20700	0.079
30204	7204E	20	47	15.25	8700	12000	27000	27200	0.126
30205	7205E	25	52	16.25	7800	9900	25400	39300	0.156
30206	7206E	30	62	17.25	6500	8300	45370	50480	0.233
30207	7207E	35	72	18.25	5600	7100	56800	63500	0.334
30208	7208E	40	80	19.75	5000	6300	59600	73300	0.424
30209	7209E	45	85	20.75	4600	5800	70700	82800	0.479
30210	7210E	50	90	21.75	4300	5300	73300	92100	0.529
L30210	L7210E	50	90	21.75	4300	5300	73300	92100	0.534
30211	7211E	55	100	22.75	3900	4900	95700	114600	0.717
L30211	L7211E	55	100	22.75	3900	4900	95700	114600	0.72
30212	7212E	60	110	23.75	3500	4500	108300	130200	0.907
30213	7213E	65	120	24.75	3200	4100	126400	152700	1.134
30214	7214E	70	125	26.25	3100	3900	124200	170500	1.3
30215	7215E	75	130	27.25	2900	3700	143000	182000	1.37
30216	7216E	80	140	28.25	2700	3500	168000	213100	1.673
30217	7217E	85	150	30.5	2600	3200	188800	241800	2.072
30218	7218E	90	160	32.5	2400	3000	209500	269700	2.536
30219	7219E	95	170	34.5	2300	2900	237200	309200	3.054
30220	7220E	100	180	37	2100	2700	265800	350600	3.718
30221	7221E	105	190	39	2000	2600	298600	398800	4.385
30222	7222E	110	200	41	1900	2500	327700	440400	5.22
30224	7224E	120	215	43.5	1700	2300	347000	473000	6.2
30226	7226E	130	230	43.75	1600	2100	377000	511000	6.94
30228	7228E	150	250	45.75	1400	1900	32500	33100	8.73

30206 Tapered Roller Bearing

Application

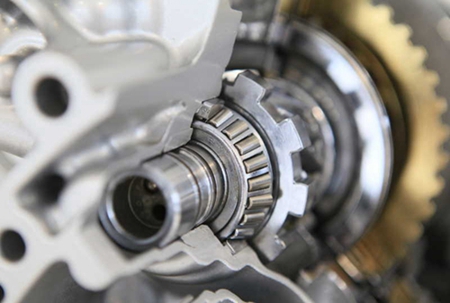

30206 Tapered Roller Bearing is a metric 3000 series model mainly used in fields such as milling machines, mining construction equipment, cleaning equipment, tapping machines, metal connections, screening equipment, compressors, clothing machinery, motorcycles, radial drilling machines, etc

30206 Tapered Roller Bearing

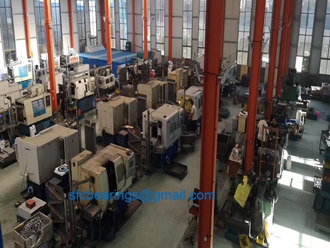

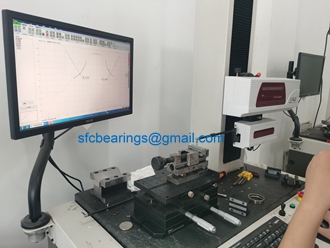

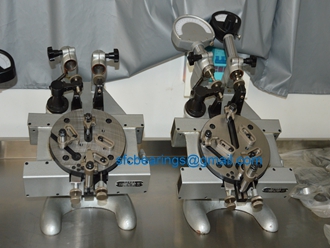

Our company specializes in producing metric and imperial single row tapered roller bearings and double row tapered roller bearings. The inner and outer rings have undergone high-end heat treatment and precision grinding, and are assembled with high-quality rolling elements and cages. During the production process, each size is tested, especially the assembly height, which has a significant impact on the quality and service life of the product. Our Private brand SFC products are exported to all parts of the world, and can also be customized according to customer requirements.

30206 Tapered Roller Bearing
