UCF212-36 Pillow Block Ball Bearing
High Load
Flexible Rotation
Excellent Sealing
Long Service Life
Gcr15 Material
P0,P6,P5,P4
HT200 Housing
Stretch Resistance
Product Introduction

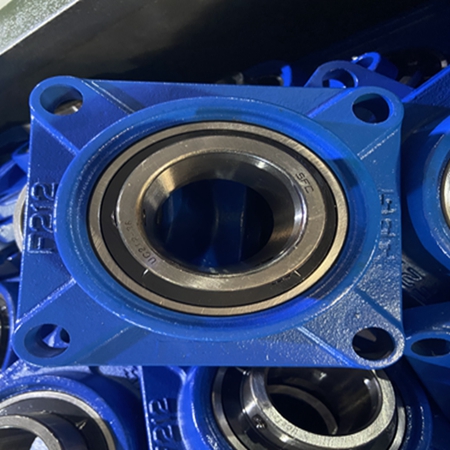

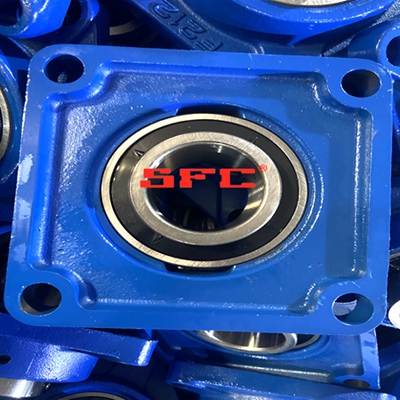

UCF212-36 Pillow Block Ball Bearing is composed of an outer spherical bearing uc212 and a seat f212. UCF212-36 Pillow Block Ball Bearing made of high-quality bearing steel material, durable and does not require regular maintenance.

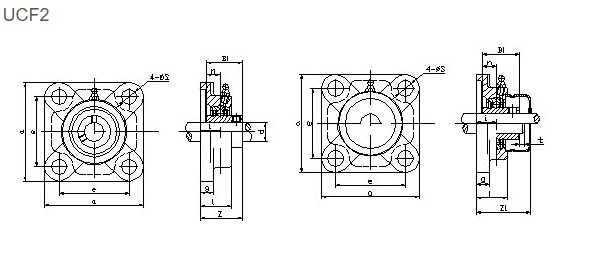

Reference data:
| Unit No. | Shaft Dia. | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Weight(kg) | ||||||||||||
| in | mm | a | e | i | g | l | s | t | z1 | z | Bi | n | mm | in | ||||
| UCF212-36 | 2-1/4 | 175 | 143 | 29 | 20 | 48 | 19 | 4 | 80 | 68.7 | 65.1 | 25.4 | M16 | 5/8 | UC212-36 | F212 | 5.85 | |
| UCF212-37 | 2-5/16 | UC212-37 | ||||||||||||||||
| UCF212-38 | 2-3/8 | UC212-38 | ||||||||||||||||
| UCF212-39 | 2-7/16 | UC212-39 | ||||||||||||||||
| UCF212 | 60 | UC212 | ||||||||||||||||
Application
UCF212-36 Pillow Block Ball Bearing can be used in insulating glass production lines, engineering and engineering design, inkjet printers, seasoning processing equipment, heat exchangers, sewage treatment equipment, variable frequency pumps, electric welding machines, household sewing machines, workbenches, sorting screens, electroplating equipment, polishing machines, rubber forming machines, shot making machines, plastic rolling machines, agricultural machinery accessories, granulation and drying equipment, and other purposes.
Contact Us
We have extensive production experience. If you need much UCF212-36 Pillow Block Ball Bearing ,or other series,remember contact us.
Email: sfcbearings1@gmail.com (Cathy) sfcbearings@gmail.com(Alina)
| Unit No. | Shaft Dia. | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Weight(kg) | |||||||||||
| in | mm | h | a | e | b | S2 | S1 | g | w | Bi | n | mm | in | ||||
| UCF212-36 | 2-1/4 | 69.8 | 241 | 184 | 70 | 25 | 20 | 25 | 138 | 65.1 | 25.4 | M16 | 5/8 | UC212-36 | F212 | ||
| UCF212-37 | 2-5/16 | UC212-37 | |||||||||||||||
| UCF212-38 | 2-3/8 | UC212-38 | |||||||||||||||
| UCF212-39 | 2-7/16 | UC212-39 | |||||||||||||||
| UCF212 | 60 | UC212 | |||||||||||||||
