UCP207-22 Ball Bearing Units
High Load
Flexible Rotation
Excellent Sealing
Long Service Life
Gcr15 Material
HT200 Housing
Stretch Resistance
P0,P6,P5,P4
Product Introduction

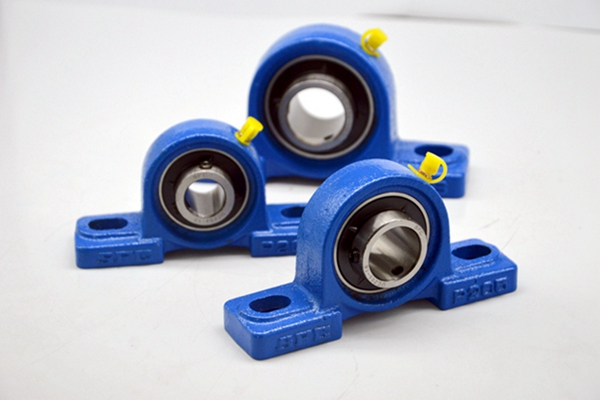

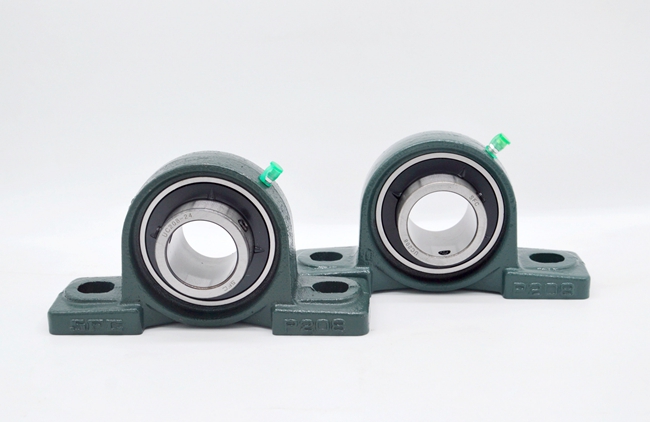

UCP207-22 Ball Bearing Units is a combination of one UC207-22 Insert bearing and one P207 Housing.

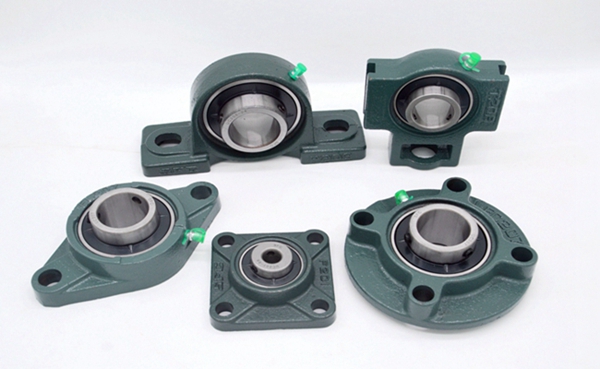

According to different combinations of Housings and bearings, they can be divided into the following models,UCP207-22 Ball Bearing Units，UCF207-22,UCT207-22,UCFL207-22,UCPA207-22Ball Bearing Units etc.

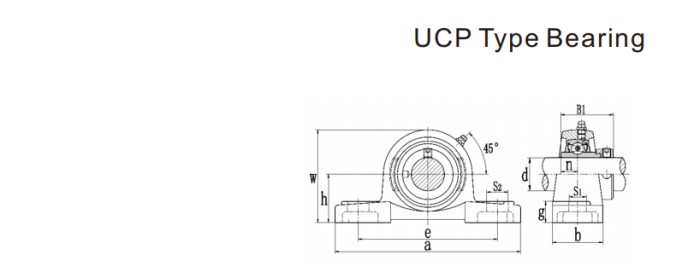

| Unit No. | Shaft Dia. | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Weight(kg) | |||||||||||
| in | mm | h | a | e | b | S2 | S1 | g | w | Bi | n | mm | in | ||||
| UCP207-20 | 1-1/4 | 47.6 | 167 | 127 | 48 | 20 | 17 | 18 | 93 | 42.9 | 17.5 | M14 | 1/2 | UC207-20 | P207 | 1.33 | |
| UCP207-21 | 1-5/16 | UC207-21 | |||||||||||||||
| UCP207-22 | 1-3/8 | UC207-22 | |||||||||||||||
| UCP207-23 | 1-7/16 | UC207-23 | |||||||||||||||
| UCP207 | 35 | UC207 | |||||||||||||||
The Housing color and logo of UCP207-22 Ball Bearing Units can be customized according to requirements. Please consult for specific minimum order quantity
Application

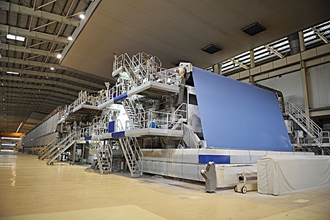

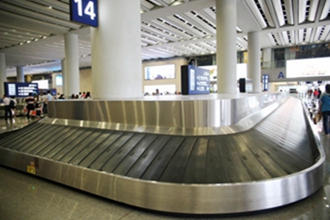

UCP207-22 Ball Bearing Units has a wide range of applications, UCP207-22 Ball Bearing Units mainly used in high-temperature working machinery such as steel mills, metallurgy, glass, blast furnaces, painting equipment, mining machinery, conveyors, transmission devices, boiler fans, vacuum equipment, kiln cars, machine tools, engineering machinery, vibrating screens, automobiles, petroleum, electricity, motors, etc.
Our factory manufactures and sells UCP207-22 Ball Bearing Units year-round.UCP207-22 Ball Bearing Units has the advantages of large load-bearing capacity, good rotational speed, good sealing performance, and long service life. The inner hole of the UC207-22 bearing in the UCP207-22 Ball Bearing Units is locally annealed to prevent cracking. And P207 Houing is HT200 Meterial, resistant to stretching and not easily broken. The UCP207-22 Ball Bearing Units are mainly exported to Europe, Türkiye, Dubai, Egypt, South Africa, Mexico, Kenya, Iran and other countries and regions.
