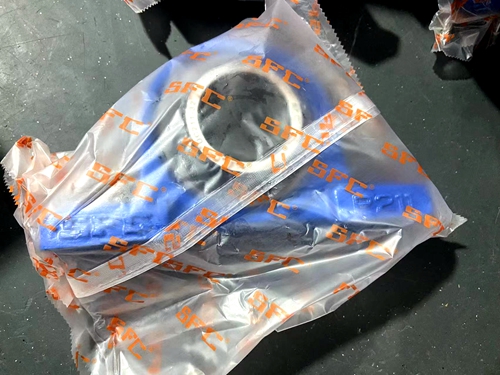

UCP211-32 Pillow Block Ball Bearing
High Load
Flexible Rotation
Excellent Sealing
Long Service Life
Gcr15 Material
P0,P6,P5,P4
HT200 Housing
Stretch Resistance
Product Introduction

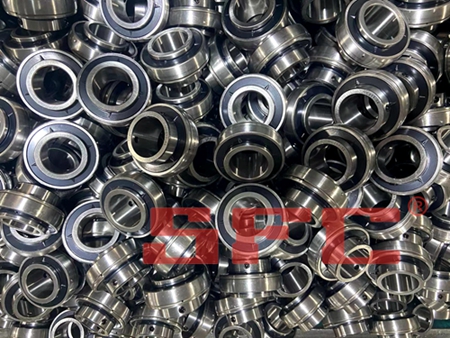

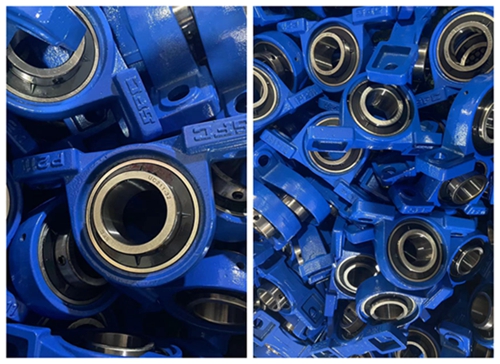

UCP211-32 Pillow Block Ball Bearing consists of an outer spherical Ball Bearing UC211-32 with sealing on both sides and a cast (or stamped) bearing seat P211.
There is a gap between the UCP211-32 Pillow Block Ball Bearing inner hole and the shaft. Use a top screw, eccentric sleeve, or locking sleeve to fix the bearing inner ring on the shaft and rotate it together with the shaft.

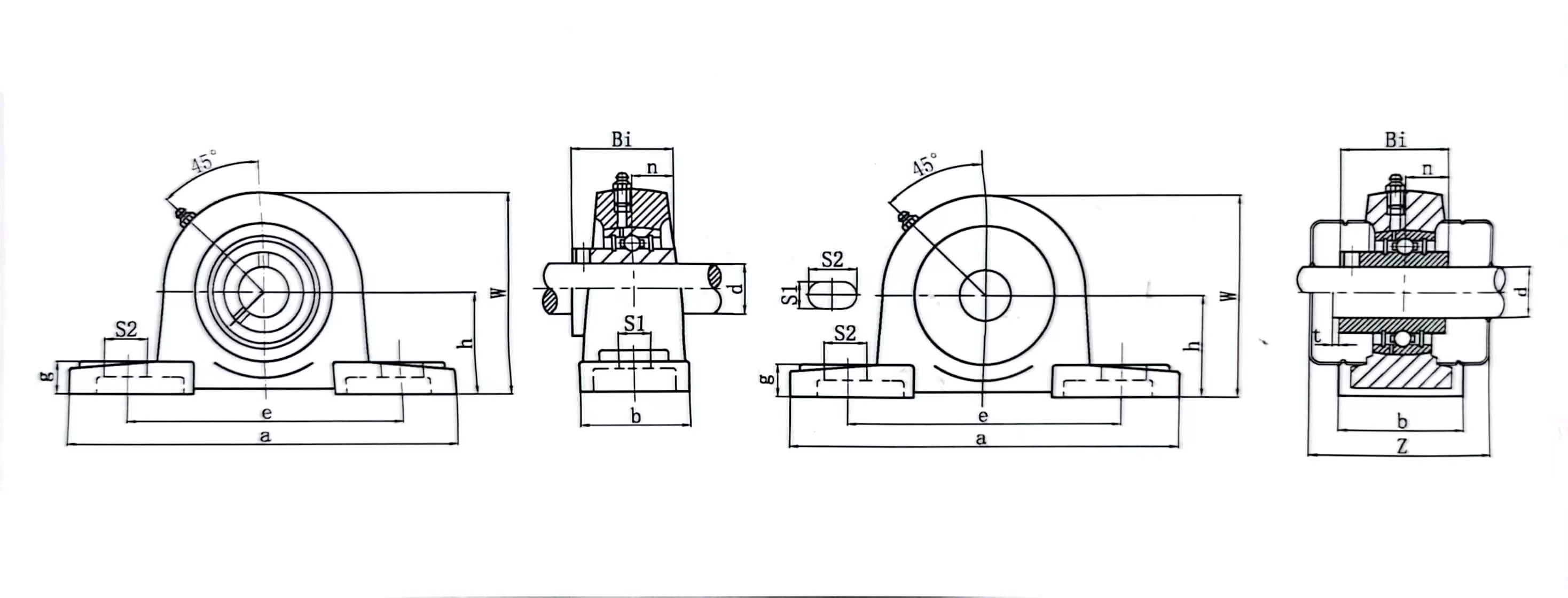

| Unit No. | Shaft Dia. | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Weight(kg) | ||||||||||||
| in | mm | h | a | e | b | S2 | S1 | g | w | Bi | n | mm | in | |||||
| UCP211-32 | 2 | 63.5 | 219 | 171 | 60 | 25 | 20 | 23 | 126 | 55.6 | 22.2 | M16 | 5/8 | UC211-32 | P211 | 3.3 | ||
| UCP211-33 | 2-1/16 | UC211-33 | ||||||||||||||||
| UCP211-34 | 2-1/8 | UC211-34 | ||||||||||||||||
| UCP211-35 | 2-3/16 | UC211-35 | ||||||||||||||||
| UCP211 | 55 | UC211 | ||||||||||||||||
Application

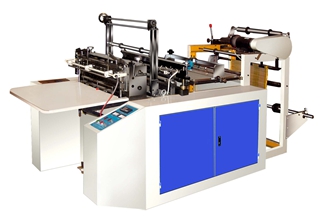

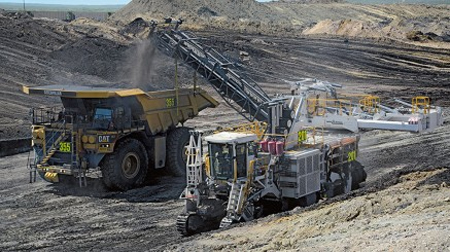

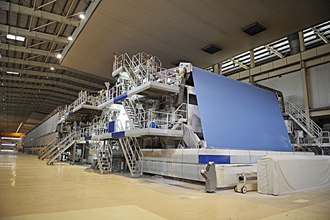

UCP211-32 Pillow Block Ball Bearing applied in many fields.UCP211-32 Pillow Block Ball Bearing compact structure, convenient loading and unloading, perfect sealing, suitable for simple support, commonly used in mining, metallurgy, agriculture, chemical industry, textile, printing and dyeing, conveying machinery, etc
