UCP209 Ball Bearing Units
Flexible Rotation
Excellent Sealing
High Load
Long Service Life
Gcr15 Material
HT200 Housing
Stretch Resistance
G16,G10,G5 Steel Balls
P0,P6,P5,P4
Product Introduction

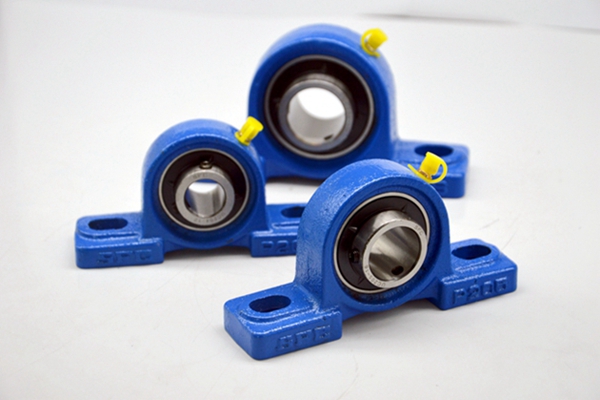

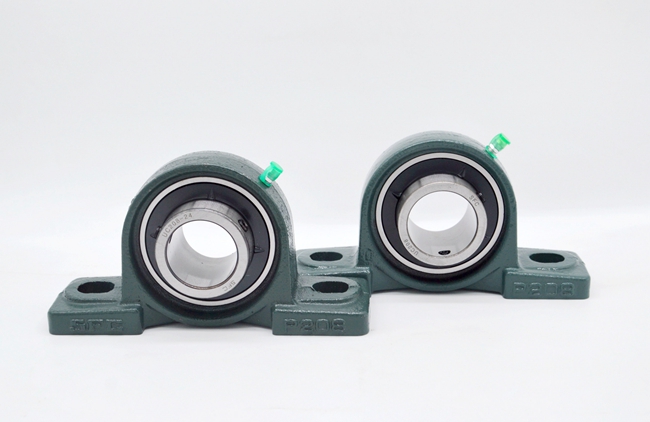

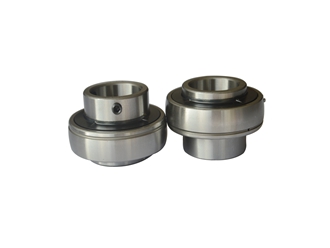

UCP209 Ball Bearing Units consists of one UC209 Insert bearing and a vertical bearing housing P209

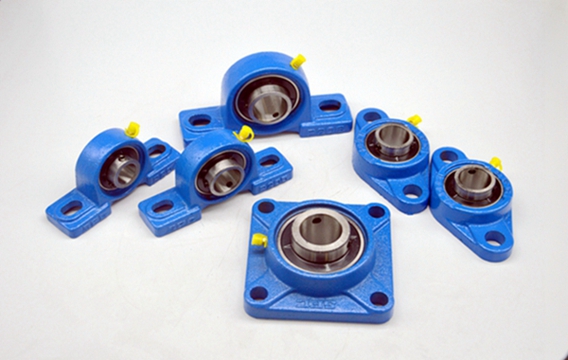

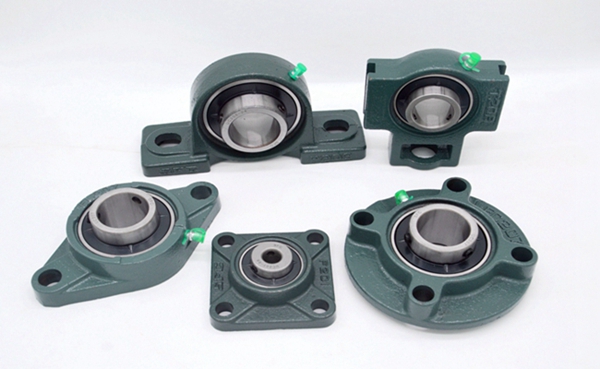

The combination of different shaped housings and UC209 insert bearing can form different projects, such as UCP209 Ball Bearing Units, UCF209, UCT209, UCFL209, UCPA209 Ball Bearing Units, etc.
The UC209 series also has Inch inside diameters, such as UCP, UCF, UCT, UCFL209-26 ball bearing units, UCP, UCF, UCT, UCFL209-27 ball bearing units, UCP, UCF, UCT, UCFL209-28 ball bearing units,etc

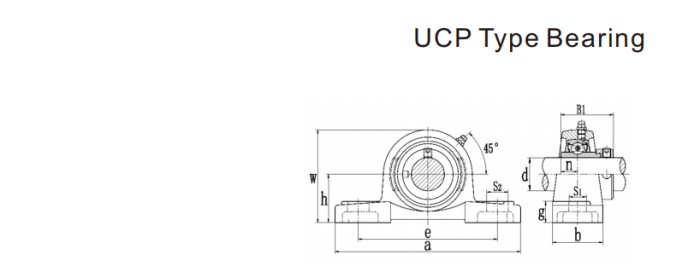

Unit No. | Shaft Dia. | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Weight(kg) | |||||||||||
in | mm | h | a | e | b | S2 | S1 | g | w | Bi | n | mm | in | ||||
UCP209-26 | 1-5/8 | 54 | 190 | 146 | 54 | 20 | 17 | 20 | 106 | 49.2 | 19 | M14 | 1/2 | UC209-26 | P209 | 1.84 | |
UCP209-27 | 1-11/16 | UC209-27 | |||||||||||||||
UCP209-28 | 1-3/4 | UC209-28 | |||||||||||||||
UCP209 | 45 | UP209 |
The Housing Color and Brand of UCP209 Ball Bearing Units could be customized .
Application

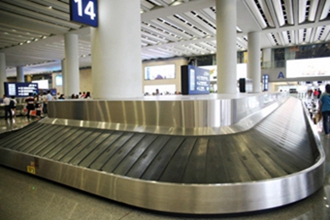

UCP209 Ball Bearing Units is mainly used in industries such as engineering machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, power, railway, etc

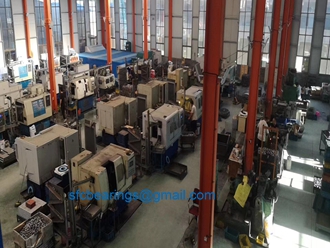

Our factory specializes in producing and exporting UCP209 Ball Bearing Units. UCP209 Ball Bearing Units are widely used in industrial production. Our UCP209 Ball Bearing Units have fine appearance, precise dimensions, flexible rotation, good sealing performance, and long service life. The inner hole of UC209 bearing in UCP209 Ball Bearing Units has undergone local heat treatment to prevent cracking. P209 Houing is made of HT200 material, which is tensile resistant and not easily broken. We have 10 containers shipped to various parts of the world every month, and we have always maintained a good and solid cooperative relationship with our customers! Welcome new customers to contact us and look forward to working with you!
Alina Manager
Mobile: +8615806967023
WhatsApp: +8615806967023
WeChat: +8615806967023
Email:sfcbearings@gmail.com
Factory Address: Industrial Zone,Yandian Town,Linqing,Shandong,China
