Self Aligning Ball Bearing 2313
Automatic centering performance
Radial load
Long lifespan
Silent smooth
Stable performance
High speed
Product Introduction
Model: Self aligning ball bearing 2313/2313K
Brand: SFC (Also can do OEM orders)
Self aligning ball bearing 2313 dimension:
Inner diameter: 65 mm
Outer diameter: 140 mm
Thickness: 48 mm
Self aligning ball bearing 22 Series:
ITEMS | Dimensions | Weight(kg) | ||
inner diameter | outer diameter | thickness |
2200 | 10 | 30 | 14 | 0.048 |
2201 | 12 | 32 | 14 | 0.053 |
2202 | 15 | 35 | 14 | 0.058 |
2203 | 17 | 40 | 16 | 0.089 |
2204 | 20 | 47 | 18 | 0.14 |
2205 | 25 | 52 | 18 | 0.16 |
2206 | 30 | 62 | 20 | 0.26 |
2207 | 35 | 72 | 23 | 0.41 |
2208 | 40 | 80 | 23 | 0.5 |
2209 | 45 | 85 | 23 | 0.53 |
2210 | 50 | 90 | 23 | 0.57 |
2211 | 55 | 100 | 25 | 0.79 |
2212 | 60 | 110 | 22 | 1.05 |
2213 | 65 | 120 | 31 | 1.4 |
2214 | 70 | 125 | 31 | 1.5 |
2215 | 75 | 130 | 31 | 1.6 |
2216 | 80 | 140 | 33 | 2 |
2217 | 85 | 150 | 36 | 2.5 |
2218 | 90 | 160 | 40 | 3.4 |
2219 | 95 | 170 | 43 | 4.1 |
2220 | 100 | 180 | 46 | 5 |
2222 | 110 | 200 | 53 | 7.1 |
In addition to Self aligning ball bearing 2313 bearings, our company also recommends a series of bearings suitable for extreme environments such as high speed and high load. Our company carries the road of "quality oriented, service oriented" and has won the trust of various machinery industry companies!
Application

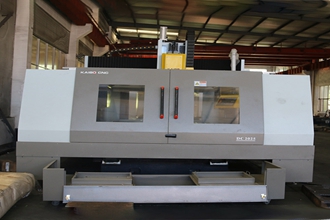

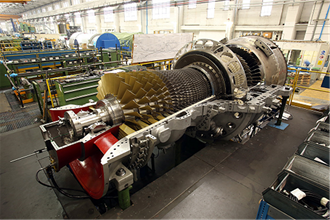

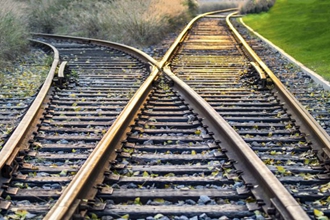

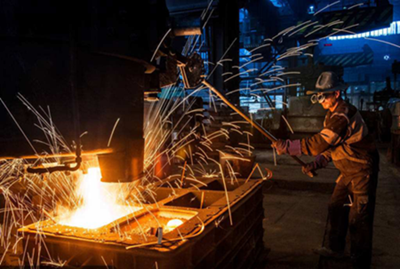

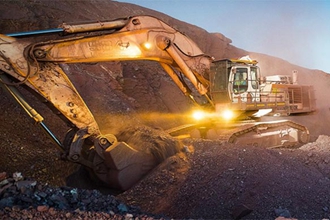

Self aligning ball bearing 2313 are mainly used in industries such as engineering machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electricity, railways, etc. Our company sells 2313 bearings at reasonable prices, ensuring quality, and providing comprehensive services to meet customer needs.
