Self Aligning Ball Bearing 1206

Automatic centering performance

Radial load

Long lifespan

Silent smooth

Stable performance

High speed

Contact Now

Product Details

Product Introduction

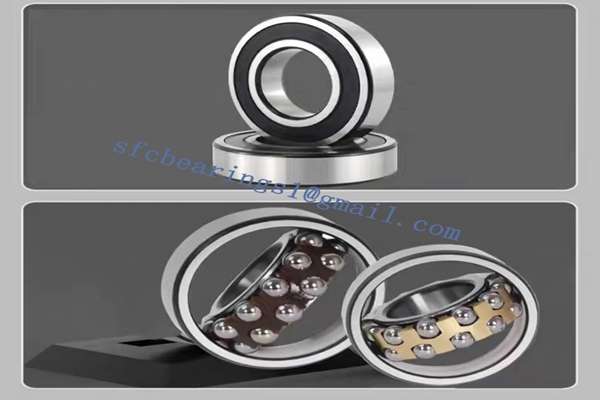

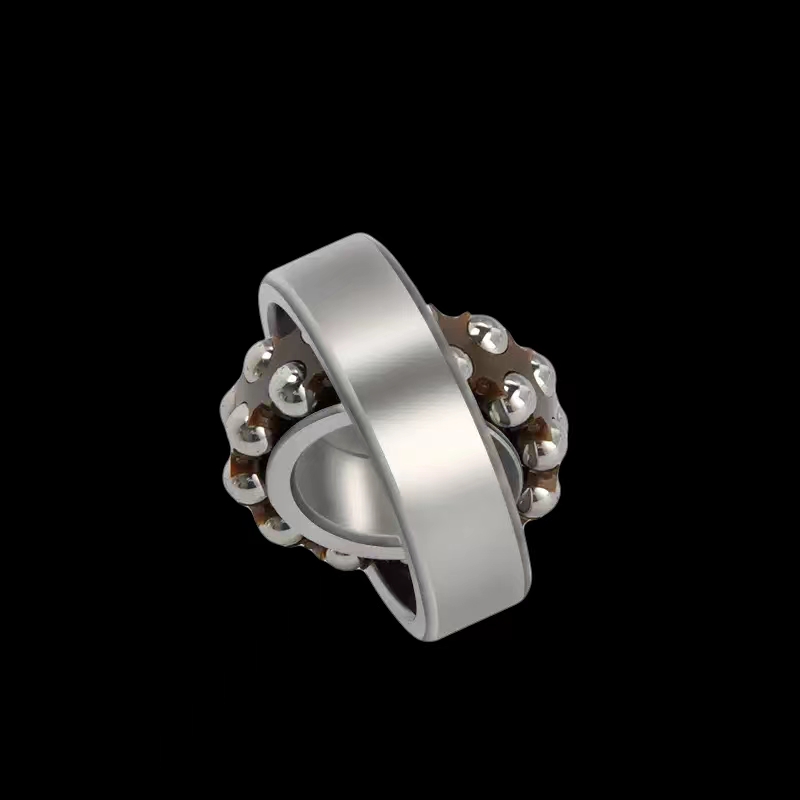

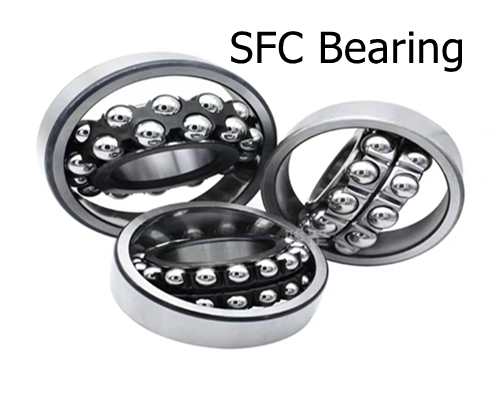

Self Aligning Ball Bearing 1206 is a bearing equipped with spherical balls between the inner race of two raceways and the outer race of a spherical raceway.

Self Aligning Ball Bearing 1206 details:

Inner diameter (mm): 30 Outer diameter (mm): 62 Width (mm): 16 Grease lubrication speed (r/min): 9900

Cor (kN): 4.65Cr (kN): 15.6 Oil lubrication speed (r/min): 12000 Weight (KG): 0.22

Double row aligning ball k: represents that the inner hole has a taper

Dual row aligning ball ATN: represents nylon retainer

Dual row aligning ball 2RS: represents rubber sealing

Double row aligning ball model: represents an open unsealed steel retainer

Self Aligning Ball Bearing 1206

ITEMS	Dimensions			Weight(kg)
ITEMS	inner diameter	outer diameter	thickness	Weight(kg)
1200	10	30	9	0.034
1201	12	32	10	0.04
1202	15	35	11	0.049
1203	17	40	12	0.073
1204	20	47	14	0.12
1205	25	52	15	0.14
1206	30	62	16	0.22
1207	35	72	17	0.32
1208	40	80	18	0.42
1209	45	85	19	0.47
1210	50	90	20	0.53
1211	55	100	21	0.71
1212	60	110	22	0.9
1213	65	120	23	1.15
1214	70	125	24	1.25
1215	75	130	25	1.35
1216	80	140	26	1.65
1217	85	150	28	2.05
1218	90	160	30	2.5
1219	95	170	32	3.1
1220	100	180	34	3.7
1222	110	200	38	5.15
1224	120	215	42	6.75
1226	130	230	46	8.3
1301	12	37	12	0.067
1302	15	42	13	0.094
1303	17	47	14	0.12
1304	20	52	15	0.16
1305	25	62	17	0.26
1306	30	72	19	0.36
1307	35	80	21	0.51
1308	40	90	23	0.68
1309	45	100	25	0.96
1310	50	110	27	1.2
1311	55	120	29	1.6
1312	60	130	31	1.95
1313	65	140	33	2.45
1314	70	150	35	3
1315	75	160	37	3.55
1316	80	170	39	4.2
1317	85	180	41	5
1318	90	190	43	5.8
1319	95	200	45	6.7
1320	100	215	47	8.3
1322	110	240	50	12
2200	10	30	14	0.048
2201	12	32	14	0.053
2202	15	35	14	0.058
2203	17	40	16	0.089
2204	20	47	18	0.14
2205	25	52	18	0.16
2206	30	62	20	0.26
2207	35	72	23	0.41
2208	40	80	23	0.5
2209	45	85	23	0.53
2210	50	90	23	0.57
2211	55	100	25	0.79
2212	60	110	22	1.05
2213	65	120	31	1.4
2214	70	125	31	1.5
2215	75	130	31	1.6
2216	80	140	33	2
2217	85	150	36	2.5
2218	90	160	40	3.4
2219	95	170	43	4.1
2220	100	180	46	5
2222	110	200	53	7.1
2301	12	37	17	0.095
2302	15	42	17	0.12
2303	17	47	19	0.18
2304	20	52	21	0.22
2305	25	62	24	0.34
2306	30	72	27	0.5
2307	35	80	31	0.68
2308	40	90	33	0.93
2309	45	100	36	1.25
2310	50	110	40	1.65
2311	55	120	42	2.1
2312	60	130	46	2.6
2313	65	140	48	3.25
2314	70	150	51	3.9
2315	75	160	55	4.7
2316	80	170	58	6.1
2317	85	180	60	7.05
2318	90	190	64	8.45
2319	95	200	67	9.8
2320	100	215	73	12.5

Application

The self-aligning ball bearing 1206 is mainly used in engineering machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electricity, railways and other industries.

Self Aligning Ball Bearing 1206

Contact Us

We can handle OEM orders. If you have any question of Self Aligning Ball Bearing 1206 ,please contact us with email: sfcbearings1@gmail.com sfcbearings@gmail.com
