30207 Tapered Roller Bearing
High Radial and Axial Bearing Capacity
Low Friction
Low Noise
Flexible Rotation
Long Service
Gcr15 Material Parts
100% Size Full Inspection
Detachable and interchangeable components
P0,P6,P5
Product Introduction

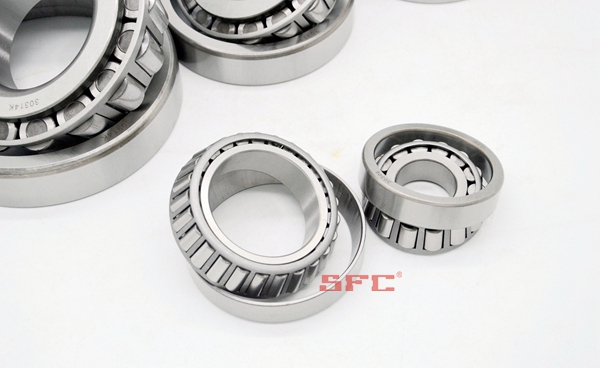

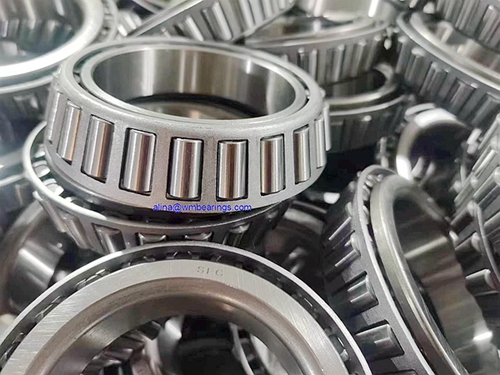

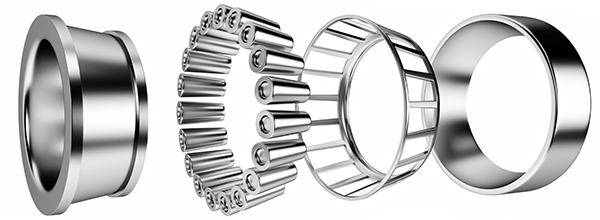

30207 tapered roller bearing is single row tapered Roller Bearing, with interchangeable inner and outer sleeves. 30207 Tapered Roller Bearing belongs to a separated type bearing, and both the inner and outer rings of the 30207 Tapered Roller Bearing have tapered raceways. 30207 Tapered Roller Bearing can withstand radial loads and axial loads in a single direction
Please refer to the following form for 30207 Tapered Roller Bearing specific parameters
Bearing Type | Basic dimensions | Limit speed | Rated load | Weight(kg) | |||||||||
New Type | Original Type | (mm)d | (mm) D | Assembly height(mm) | Grease | Oil | Dynamic | Static | |||||
30203 | 7203E | 17 | 40 | 13.25 | 10000 | 14000 | 20800 | 20700 | 0.079 | ||||
30204 | 7204E | 20 | 47 | 15.25 | 8700 | 12000 | 27000 | 27200 | 0.126 | ||||
30205 | 7205E | 25 | 52 | 16.25 | 7800 | 9900 | 25400 | 39300 | 0.156 | ||||
30206 | 7206E | 30 | 62 | 17.25 | 6500 | 8300 | 45370 | 50480 | 0.233 | ||||
30207 | 7207E | 35 | 72 | 18.25 | 5600 | 7100 | 56800 | 63500 | 0.334 | ||||
30208 | 7208E | 40 | 80 | 19.75 | 5000 | 6300 | 59600 | 73300 | 0.424 | ||||
30209 | 7209E | 45 | 85 | 20.75 | 4600 | 5800 | 70700 | 82800 | 0.479 | ||||
30210 | 7210E | 50 | 90 | 21.75 | 4300 | 5300 | 73300 | 92100 | 0.529 | ||||
L30210 | L7210E | 50 | 90 | 21.75 | 4300 | 5300 | 73300 | 92100 | 0.534 | ||||
30211 | 7211E | 55 | 100 | 22.75 | 3900 | 4900 | 95700 | 114600 | 0.717 | ||||
L30211 | L7211E | 55 | 100 | 22.75 | 3900 | 4900 | 95700 | 114600 | 0.72 | ||||
30212 | 7212E | 60 | 110 | 23.75 | 3500 | 4500 | 108300 | 130200 | 0.907 | ||||
30213 | 7213E | 65 | 120 | 24.75 | 3200 | 4100 | 126400 | 152700 | 1.134 | ||||
30214 | 7214E | 70 | 125 | 26.25 | 3100 | 3900 | 124200 | 170500 | 1.3 | ||||
30215 | 7215E | 75 | 130 | 27.25 | 2900 | 3700 | 143000 | 182000 | 1.37 | ||||
30216 | 7216E | 80 | 140 | 28.25 | 2700 | 3500 | 168000 | 213100 | 1.673 | ||||
30217 | 7217E | 85 | 150 | 30.5 | 2600 | 3200 | 188800 | 241800 | 2.072 | ||||
30218 | 7218E | 90 | 160 | 32.5 | 2400 | 3000 | 209500 | 269700 | 2.536 | ||||
30219 | 7219E | 95 | 170 | 34.5 | 2300 | 2900 | 237200 | 309200 | 3.054 | ||||
30220 | 7220E | 100 | 180 | 37 | 2100 | 2700 | 265800 | 350600 | 3.718 | ||||
30221 | 7221E | 105 | 190 | 39 | 2000 | 2600 | 298600 | 398800 | 4.385 | ||||
30222 | 7222E | 110 | 200 | 41 | 1900 | 2500 | 327700 | 440400 | 5.22 | ||||
30224 | 7224E | 120 | 215 | 43.5 | 1700 | 2300 | 347000 | 473000 | 6.2 | ||||
30226 | 7226E | 130 | 230 | 43.75 | 1600 | 2100 | 377000 | 511000 | 6.94 | ||||
30228 | 7228E | 150 | 250 | 45.75 | 1400 | 1900 | 32500 | 33100 | 8.73 |
Application

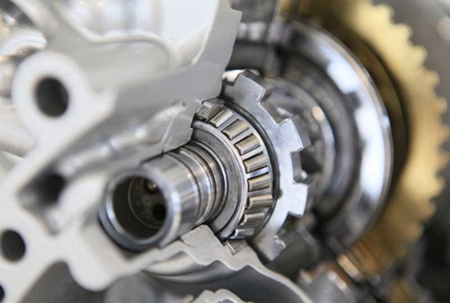

30207 Tapered Roller Bearing is mainly used in engineering hydraulic cylinders, forging machines, engineering machines, mechanical instruments and meters, motors, chemical engineering, transportation and other machinery, front wheels, generators, internal combustion engines, gas turbines, machine tool spindles, reduction devices, etc

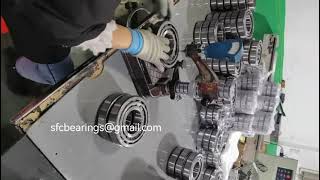

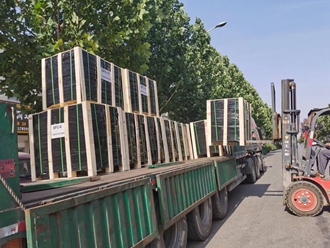

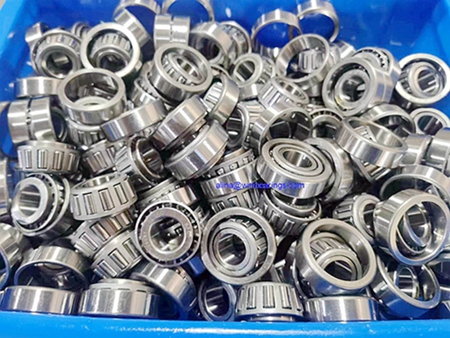

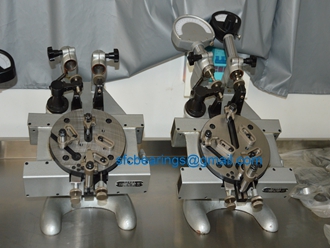

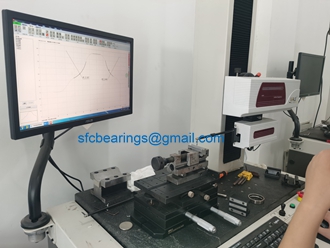

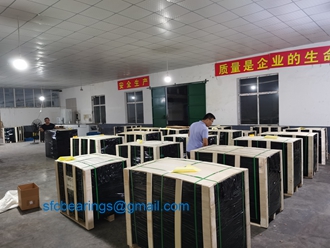

Our company specializes in production and wholesale tapered roller bearings in metric and inch sizes. We have introduced advanced fully automatic production equipment, with the inner and outer rings undergoing high-end heat treatment and precision grinding, and assembled with high-quality rolling elements and cages. Before assembly, each size is tested, especially the assembly height, which has a significant impact on the quality and service life of the product. Our Private label SFC products are exported to Italy, Russia, the Middle East, South America and Southeast Asia. We can also OEM products according to customers.
