SFC 30305- 25x62x18.25 mm Single Row Tapered Roller Bearing
High Radial and Axial Bearing Capacity
Low Friction
Low Noise
Flexible Rotation
Long Service
Gcr15 Material Parts
100% Size Full Inspection
Stable operation
Detachable and interchangeable components
P0,P6,P5
Product Introduction

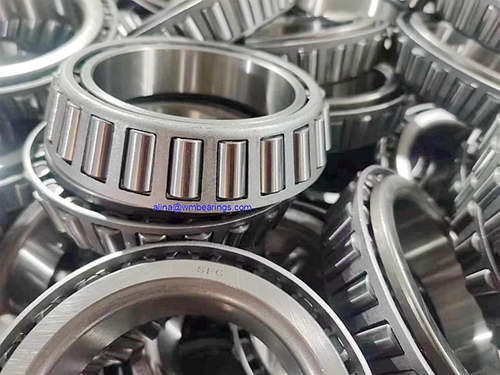

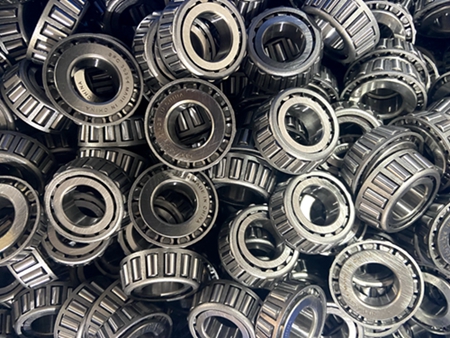

SFC 30305- 25x62x18.25 mm Single Row Tapered Roller Bearing is one commom products.Domestic old models is 7305E. From materical to the finished products,every process has undergone strict inspection.SFC 30305- 25x62x18.25 mm Single Row Tapered Roller Bearing belonging to the metric 30000 series of tapered rollers, suitable for grease lubrication with a speed of 6300r/min and oil lubrication with a speed of 8000r/min. Its rated dynamic load is 46.8kN, and its rated static load is 48.0kN.The inner ring assembly with rollers and cages can be installed separately from the outer ring. This separable and interchangeable bearing is easy to install, disassemble, and maintain.

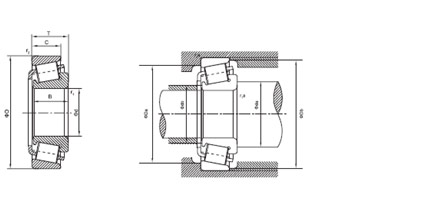

| Bearing Number | Principal Dimensions(mm) | Basic Load Ratings(KN) | Limiting Speeds(r/min) | Weight/kg | Mounting Dimensions(mm) | |||||||||||
| d | D | T | B | C | r1min | r2min | Cr | Cor | Grease | Oil | da min | db max | Da min | Db min | ||
| 30305 | 25 | 62 | 18.25 | 17 | 15 | 1.5 | 1.5 | 47 | 48.3 | 6700 | 9000 | 0.266 | 34 | 32 | 54 | 57 |
| 32005 | 25 | 47 | 15 | 15 | 11.5 | 0.6 | 0.6 | 27 | 32.5 | 8000 | 11000 | 0.115 | 30 | 30 | 40 | 44 |
| 30205 | 25 | 52 | 16.25 | 15 | 13 | 1 | 1 | 33.7 | 39.4 | 7500 | 10000 | 0.153 | 31 | 31 | 44 | 48 |
| 32205 | 25 | 52 | 19.25 | 18 | 16 | 1 | 1 | 42 | 47 | 7500 | 10000 | 0.184 | 31 | 31 | 44 | 48 |
| 33205 | 25 | 52 | 22 | 22 | 18 | 1 | 1 | 47.3 | 56 | 6700 | 9000 | 0.23 | 30 | 31 | 43 | 49 |
| 31305 | 25 | 62 | 18.25 | 17 | 13 | 1.5 | 1.5 | 40.7 | 46 | 5600 | 7500 | 0.264 | 34 | 32 | 47 | 59 |
| 32305 | 25 | 62 | 25.25 | 24 | 20 | 1.5 | 1.5 | 61.7 | 68.9 | 6000 | 8000 | 0.367 | 33 | 32 | 53 | 57 |
Application Area

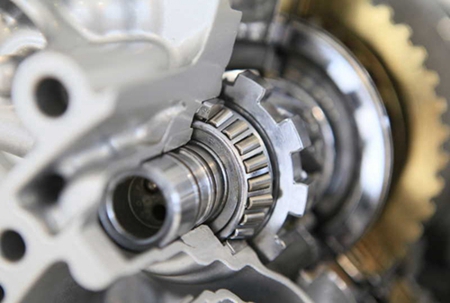

SFC 30305- 25x62x18.25 mm Single Row Tapered Roller Bearing usually used to support large radial and axial loads. SFC 30305- 25x62x18.25 mm Single Row Tapered Roller Bearing widely used in mechanical manufacturing and other industrial fields, such as machine tools, automobiles, agricultural machinery, etc.
More details about SFC 30305- 25x62x18.25 mm Single Row Tapered Roller Bearings,kindly contact me.
